Instalation Available: $2,050

Flooring Requirement: 4" inch concrete

Power Requirement: 110V Single Phase, 20A Breaker

Key Features

• 9,000 lb Lifting Capacity
• CE Certified Lift Structure & Hydraulic System
• Third party tested with a static load capacity of 150%
• Third party tested with a dynamic load capacity of 115%
• Easy operation & maintenance
• Bucher hydraulic system
• Dedicated hydraulic return line
• Secondary slack-cable lock system for fail-safe protection
• Safer operation with a revolutionary high efficient 110V 1.5HP hydraulic power unit
• Doesn't require bolting down
• Superior corrosion resistance
• 3-Year Warranty

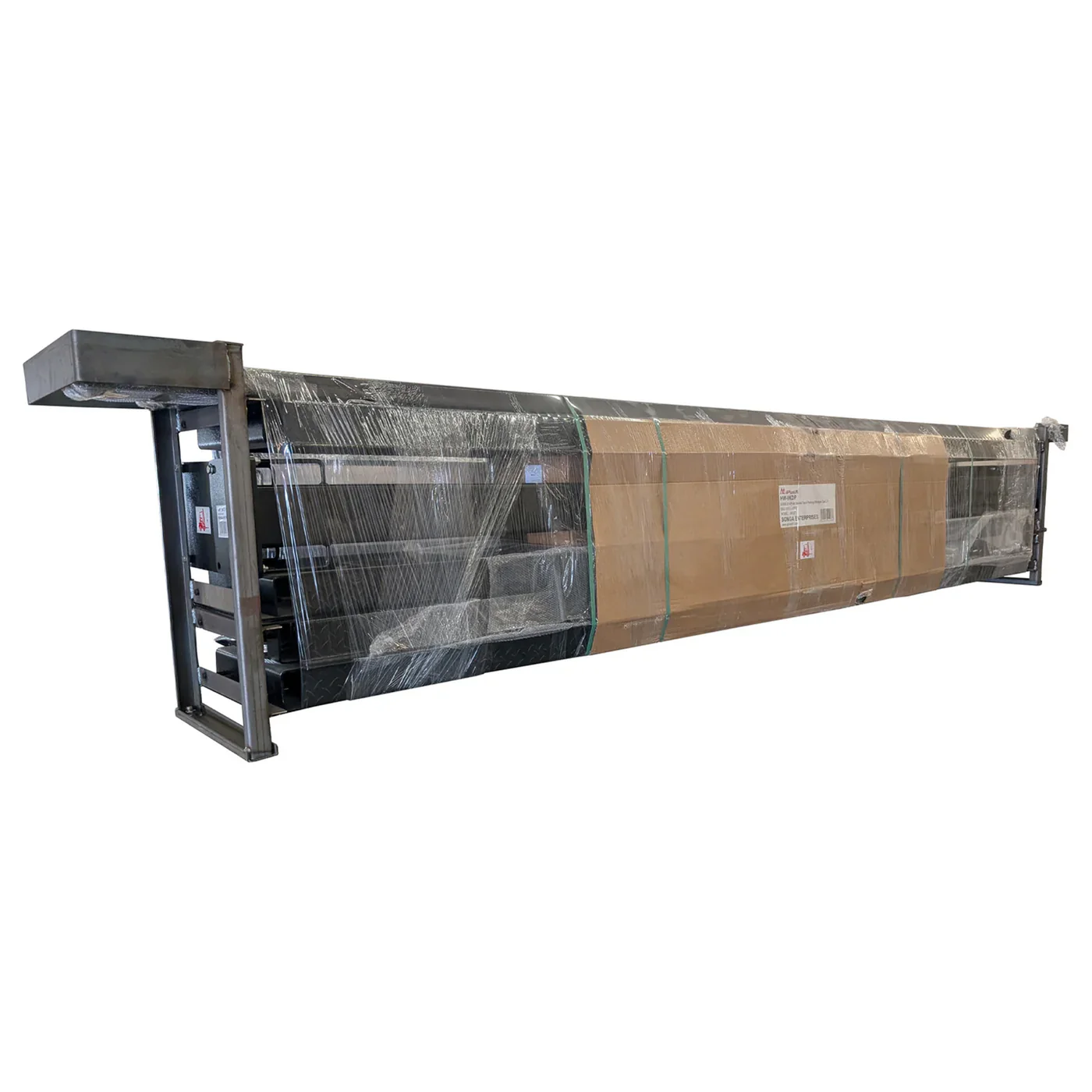

What’s Included:

• 4 Steel Ramps
• 6 Drip Trays
• 2 Jack Tray
• Tire Stops
• Wheel Chocks
• Caster Kit

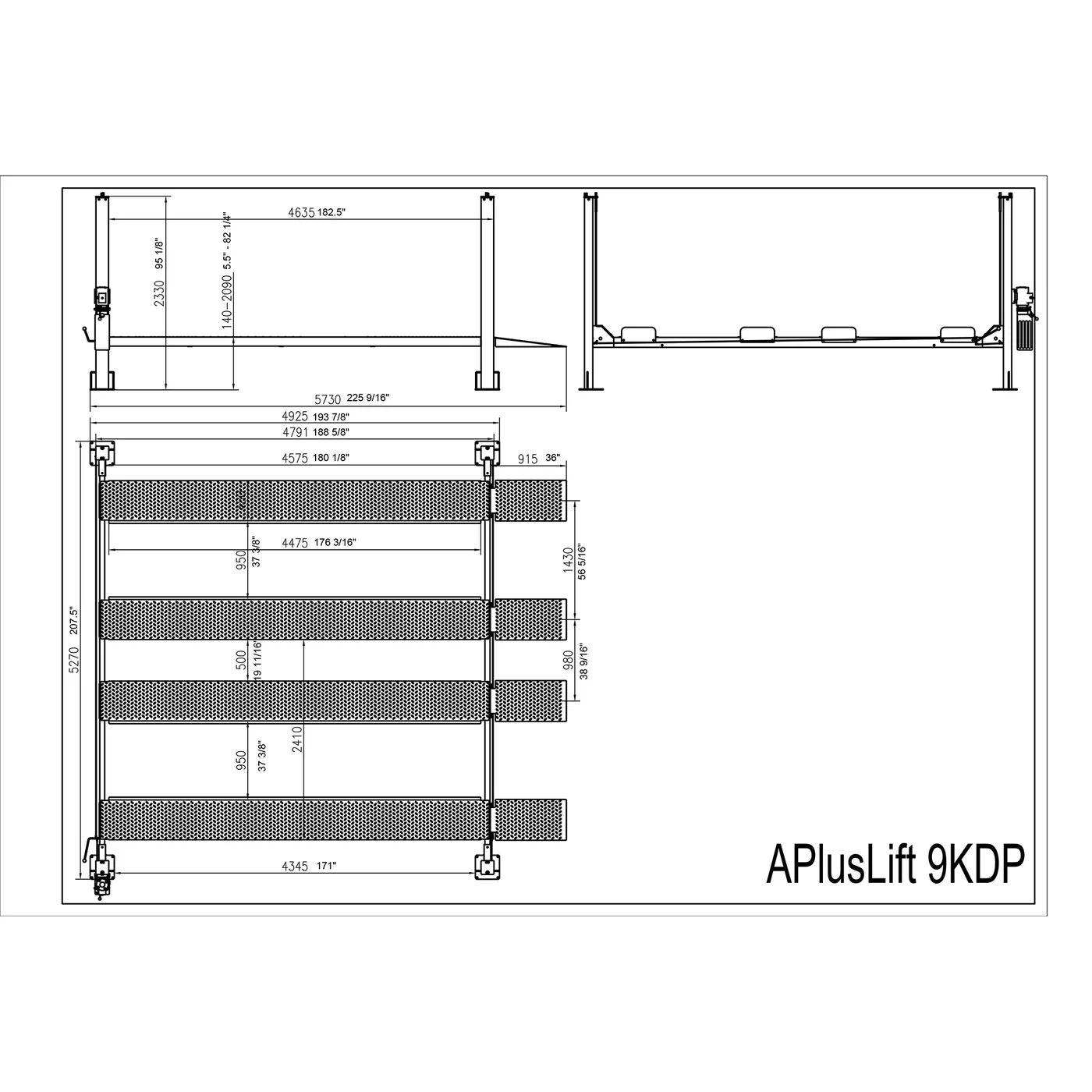

Overall Height: 96"

Overall Length: 194"

Overall Width: 210"

Drive Through Width:  93" per spot

Maximum Lifting Height: 82"

Clearance Under Runway: 74"

Runway Size: 184" L x 19" W

Width Between Four Runways: 37 3/8" - 19 11/16" - 37 3/8"
