Installation Available:  $1,750

Flooring Requirement: 4" inch concrete

Power Requirement: 220V Single Phase, 20A Breaker

Key Features

• 11,000 lb Lifting Capacity
• CE Certified Lift Structure & Hydraulic System
• Third party tested with a static load capacity of 150%
• Third party tested with a dynamic load capacity of 115%
• Easy operation & maintenance
• Bucher hydraulic system
• Secondary slack-cable lock system for fail-safe protection
• Boxed post design
• Outside slider nylon post inserts
• 14 locking positions
• Doesn't require bolting down
• Superior corrosion resistance
• 3-Year Warranty

What’s Included:

• Steel Ramps
• Jack Tray
• Tire Stops
• Wheel Chocks
• Caster Kit
• Optional Drip Trays

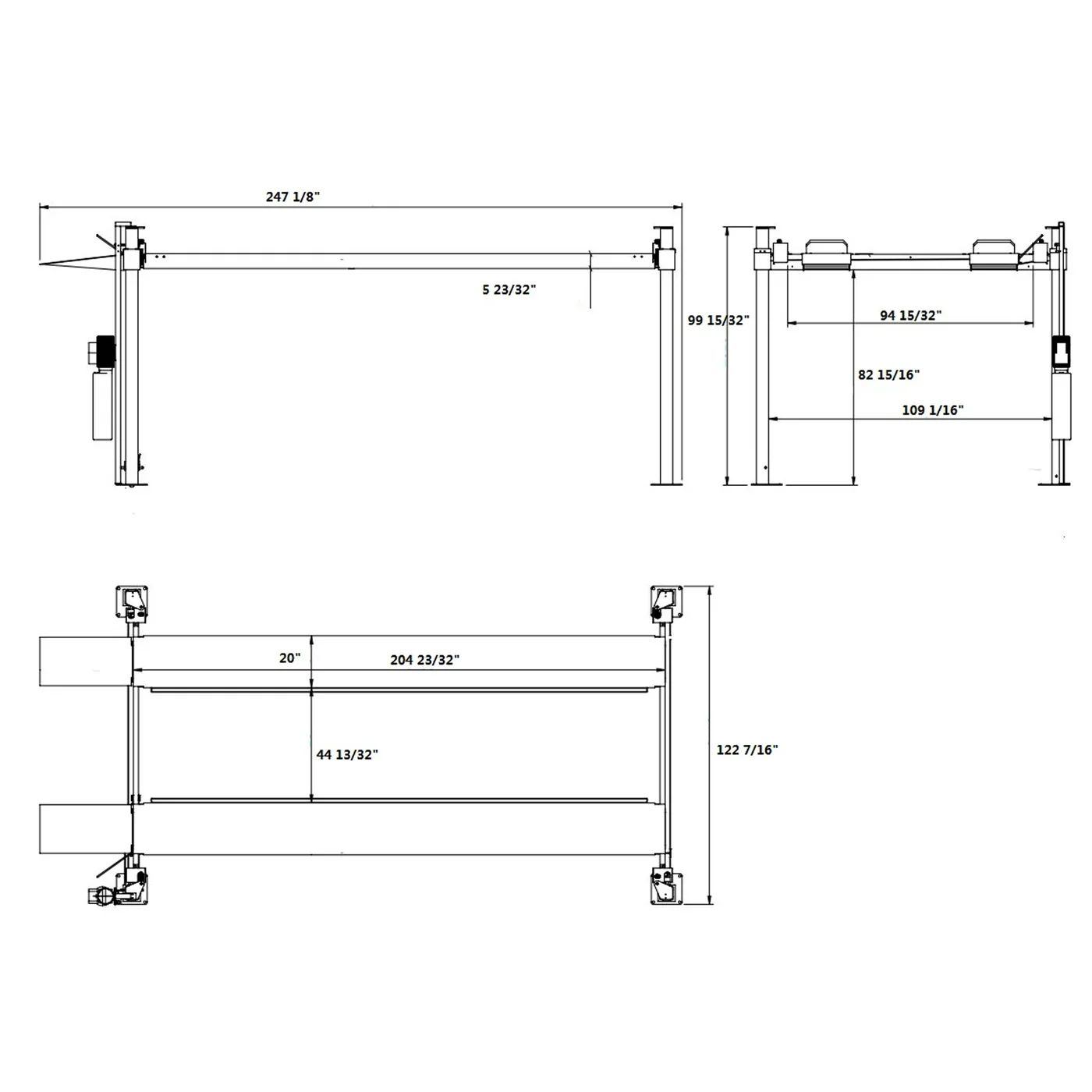

Overall Height: 99 15/32"

Overall Length: 247 1/8"

Overall Width: 122 7/16"

Drive Through Width:  112"

Maximum Lifting Height: 88 21/32"

Clearance Under Runway: 82 15/16"

Runway Size: 204 23/32" L x 20" W

Width Between Runway: 44 13/32" inside to inside

Width Outside Runway: 84 13/32" outside to outside
