Instalation Available: $1,375

Flooring Requirement: 4" inch concrete

Power Requirement: 110V Single Phase, 20A Breaker

Key Features

• 8,000 lb Lifting Capacity
• CE Certified Lift Structure & Hydraulic System
• Third party tested with a static load capacity of 150%
• Third party tested with a dynamic load capacity of 115%
• Easy operation & maintenance
• Bucher hydraulic system
• Nylon post inserts for smooth operation

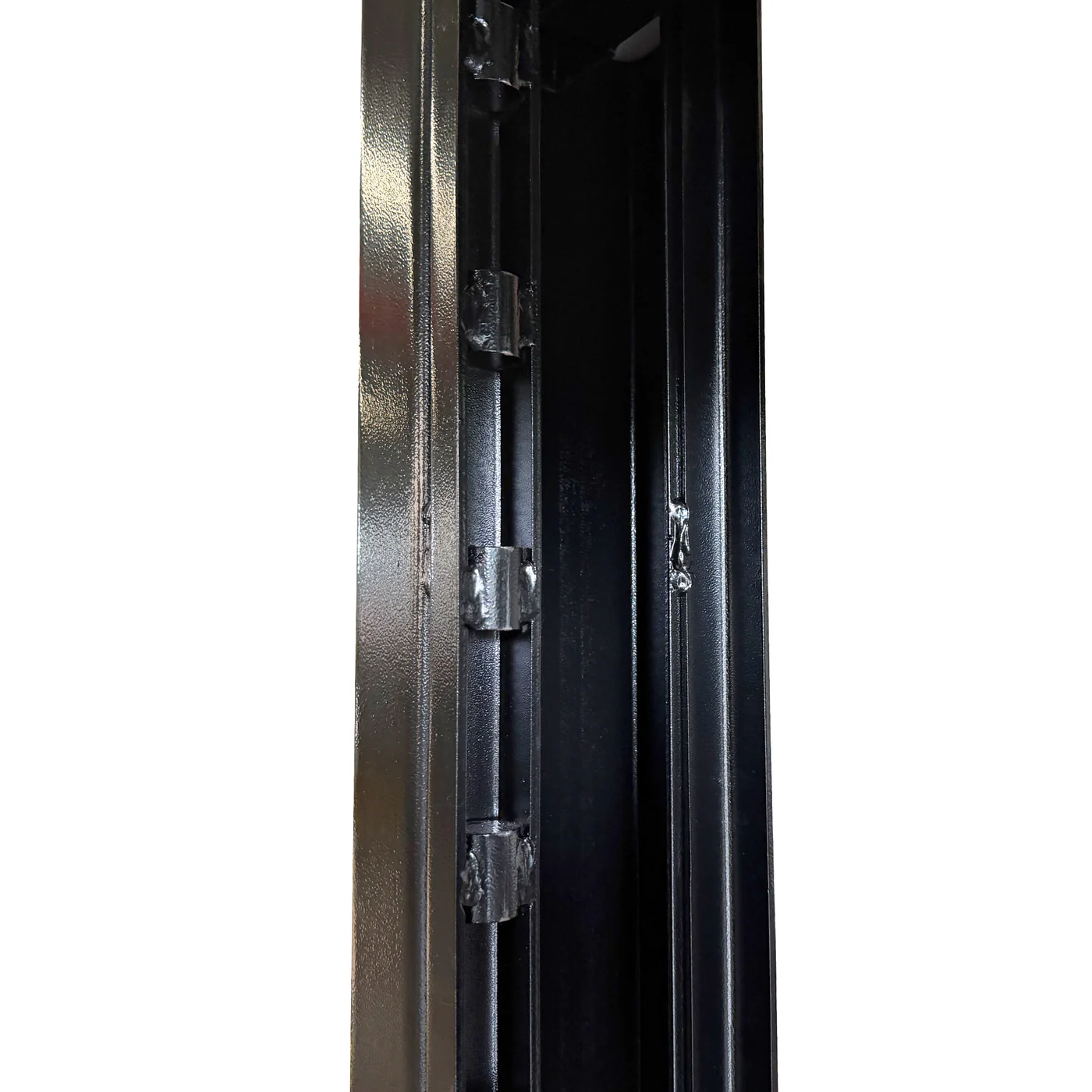

• Secondary slack-cable lock system for fail-safe protection
• Safer operation with a revolutionary high efficient 110V 1.5HP hydraulic power unit
• Doesn't require bolting down
• Superior corrosion resistance
• 3-Year Warranty

What’s Included:

• Steel Ramps
• 3 Drip Trays

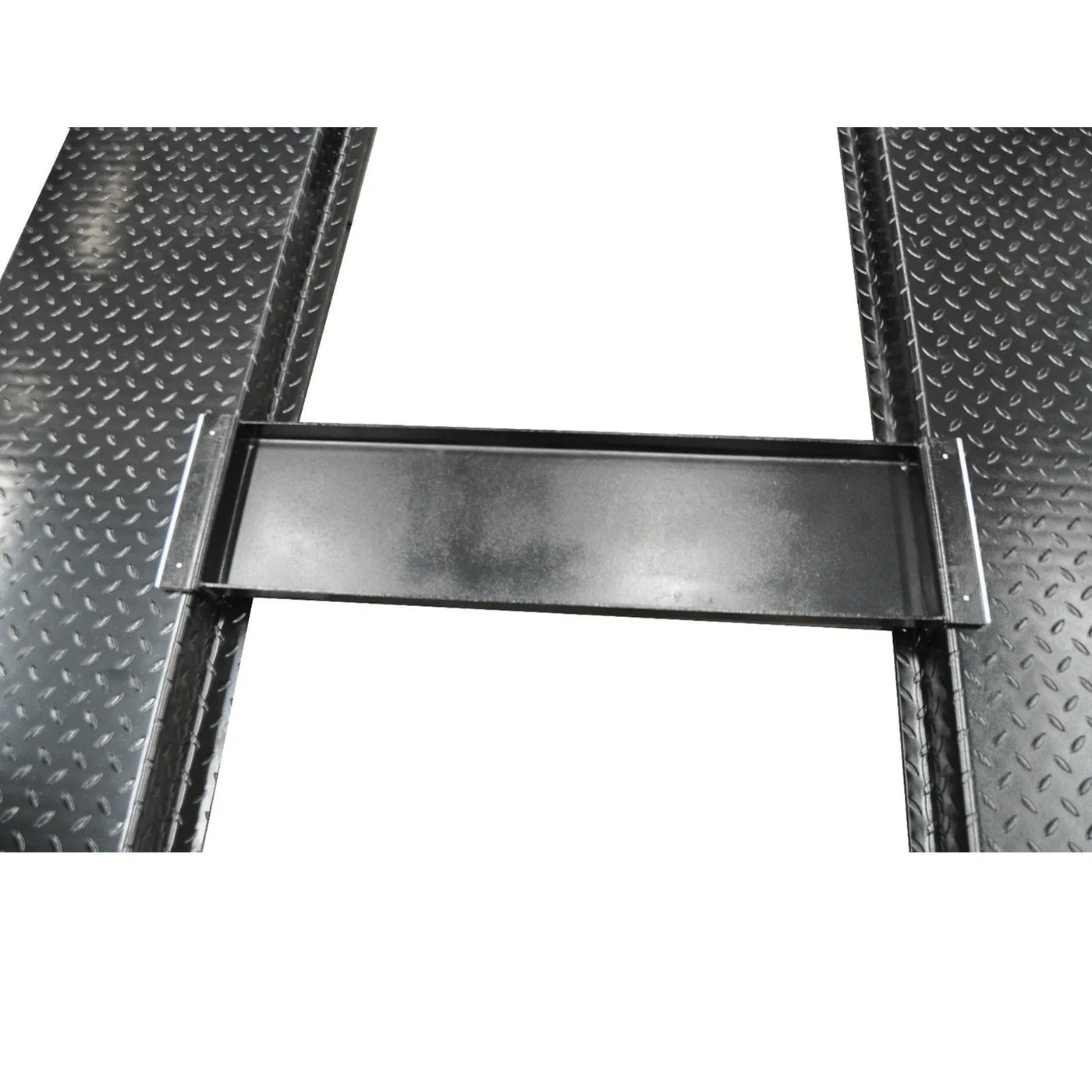

• Jack Tray
• Tire Stops
• Wheel Chocks

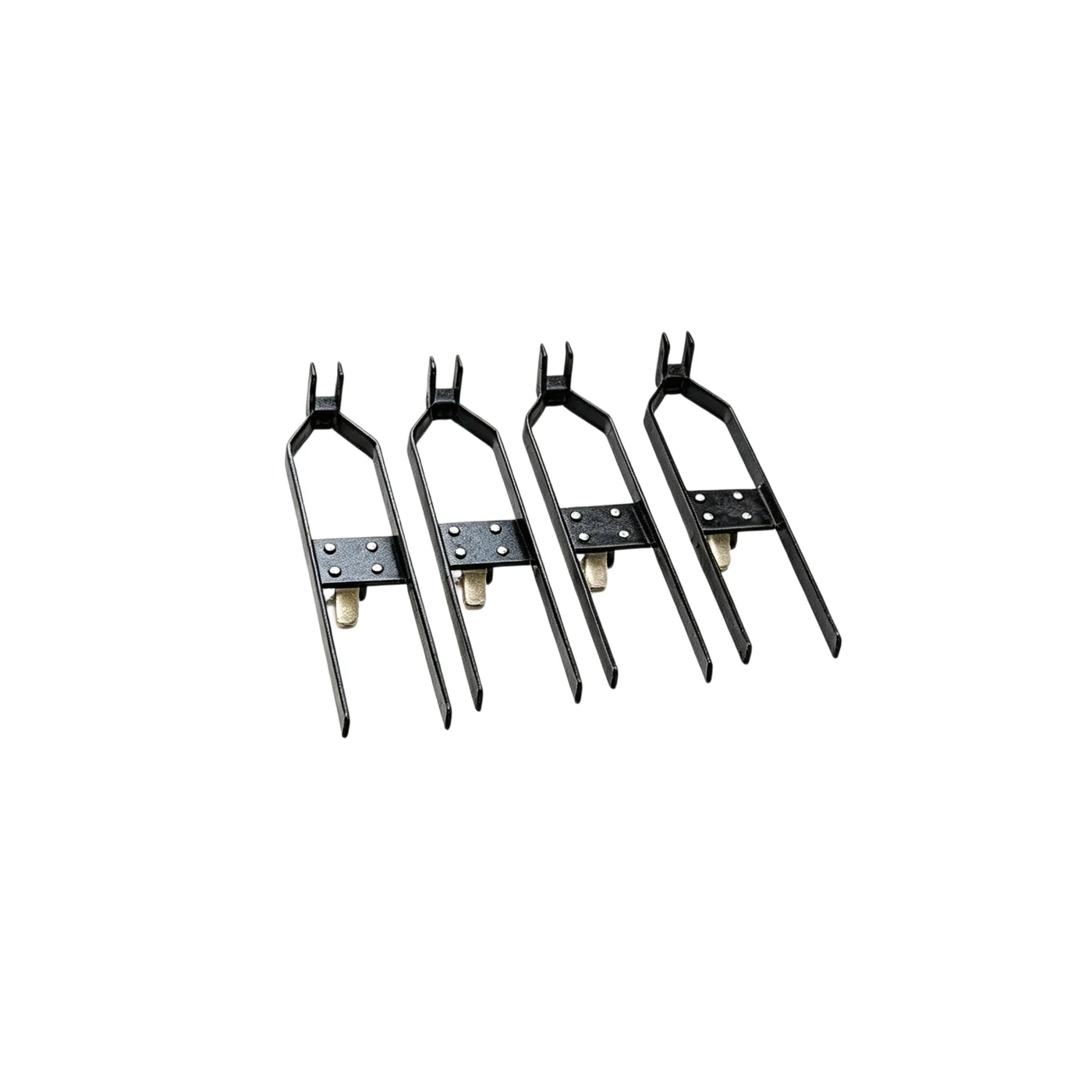

• Caster Kit

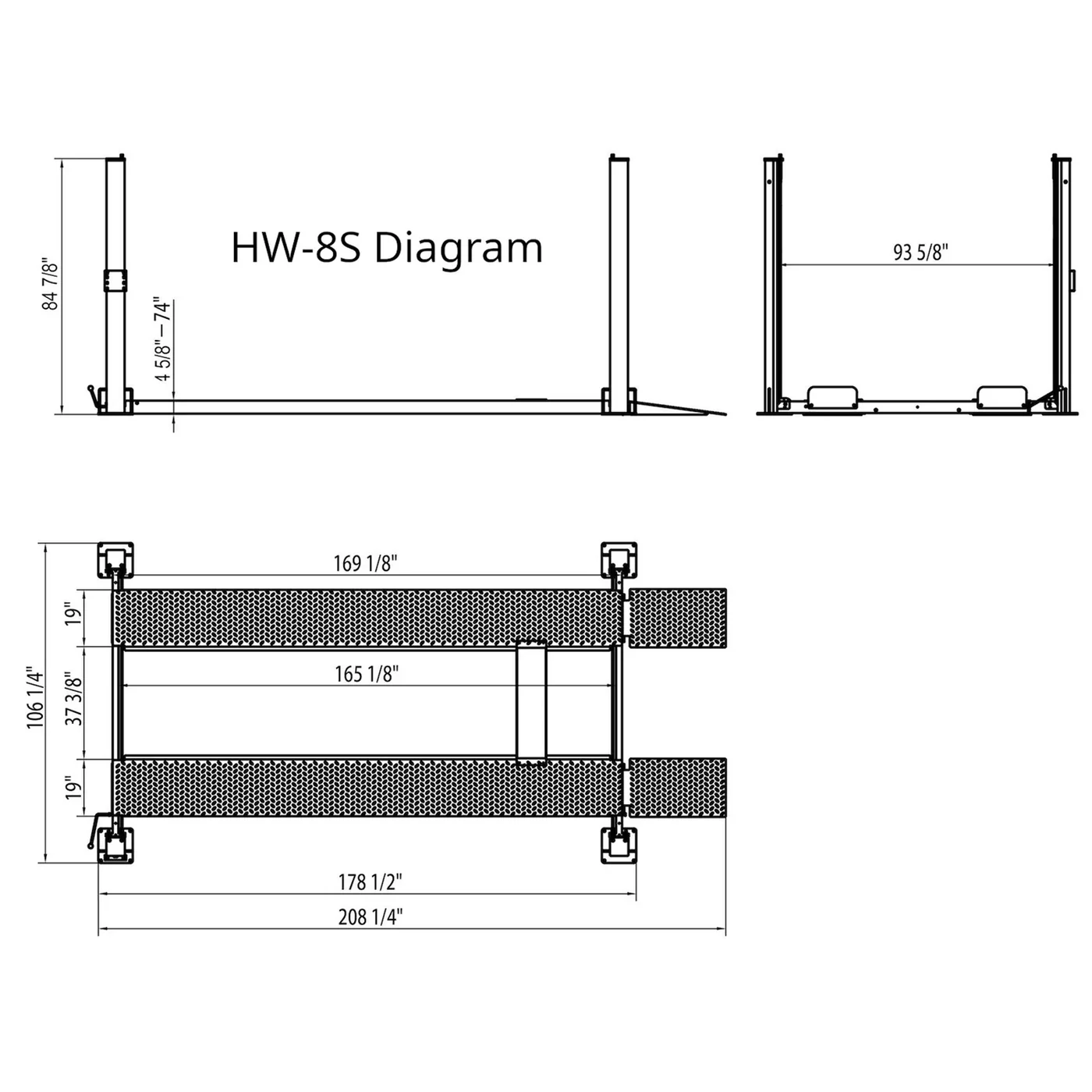

Overall Height: 84"

Overall Length: 178"

Overall Width: 106"

Drive Through Width:  93"

Maximum Lifting Height: 72"

Clearance Under Runway: 66"

Runway Size: 165" L x 18 1/2" W

Width Between Runway: 38" inside to inside.

Width Outside Runway: 75" outside to outside.
