Instalation Available: $1,625

Flooring Requirement: 4" inch concrete

Power Requirement: 110V Single Phase, 20A Breaker

Key Features

• 9,000 lb Lifting Capacity
• CE Certified Lift Structure & Hydraulic System
• Third party tested with a static load capacity of 150%
• Third party tested with a dynamic load capacity of 115%
• Easy operation & maintenance
• Bucher hydraulic system
• Dedicated hydraulic return line

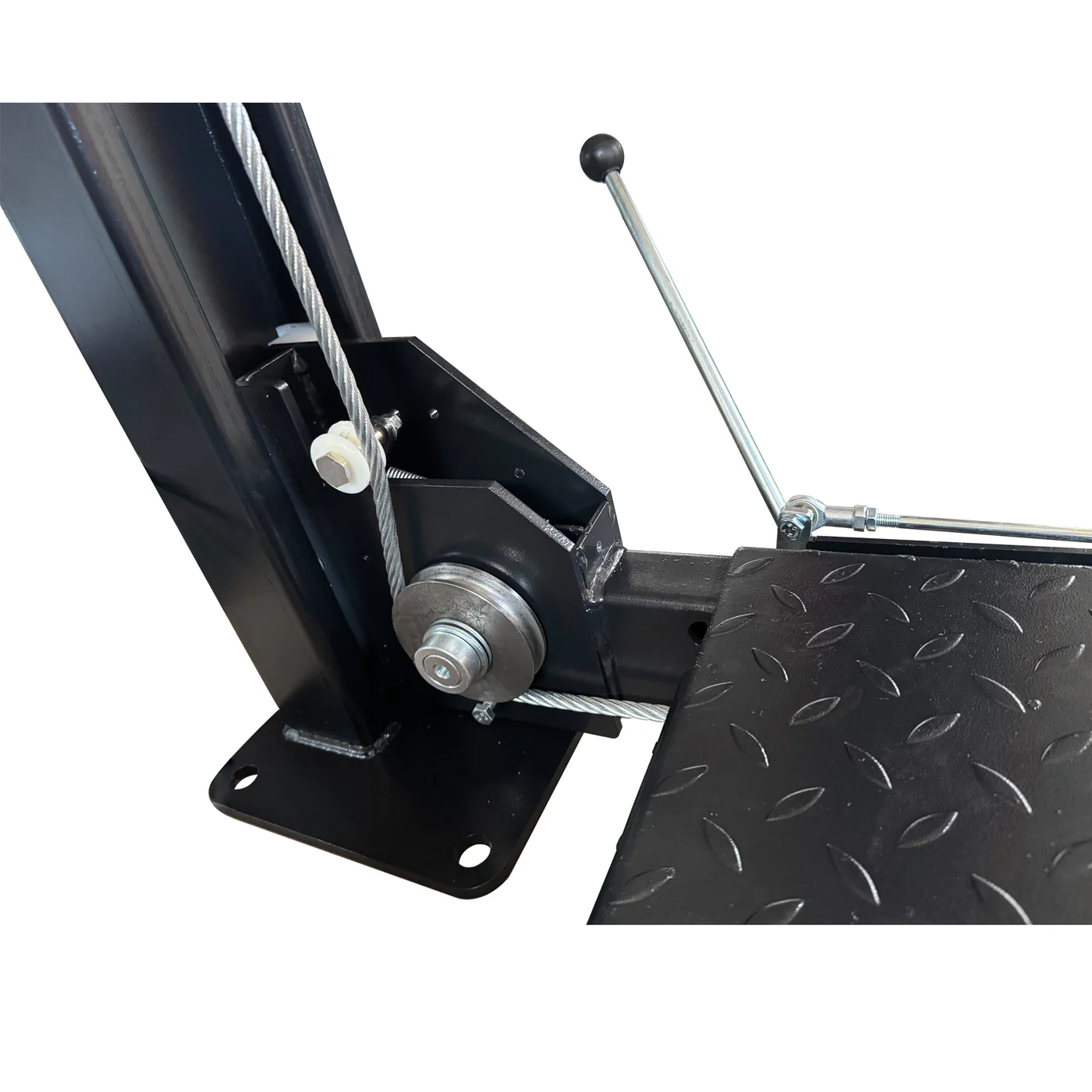

• Secondary slack-cable lock system for fail-safe protection

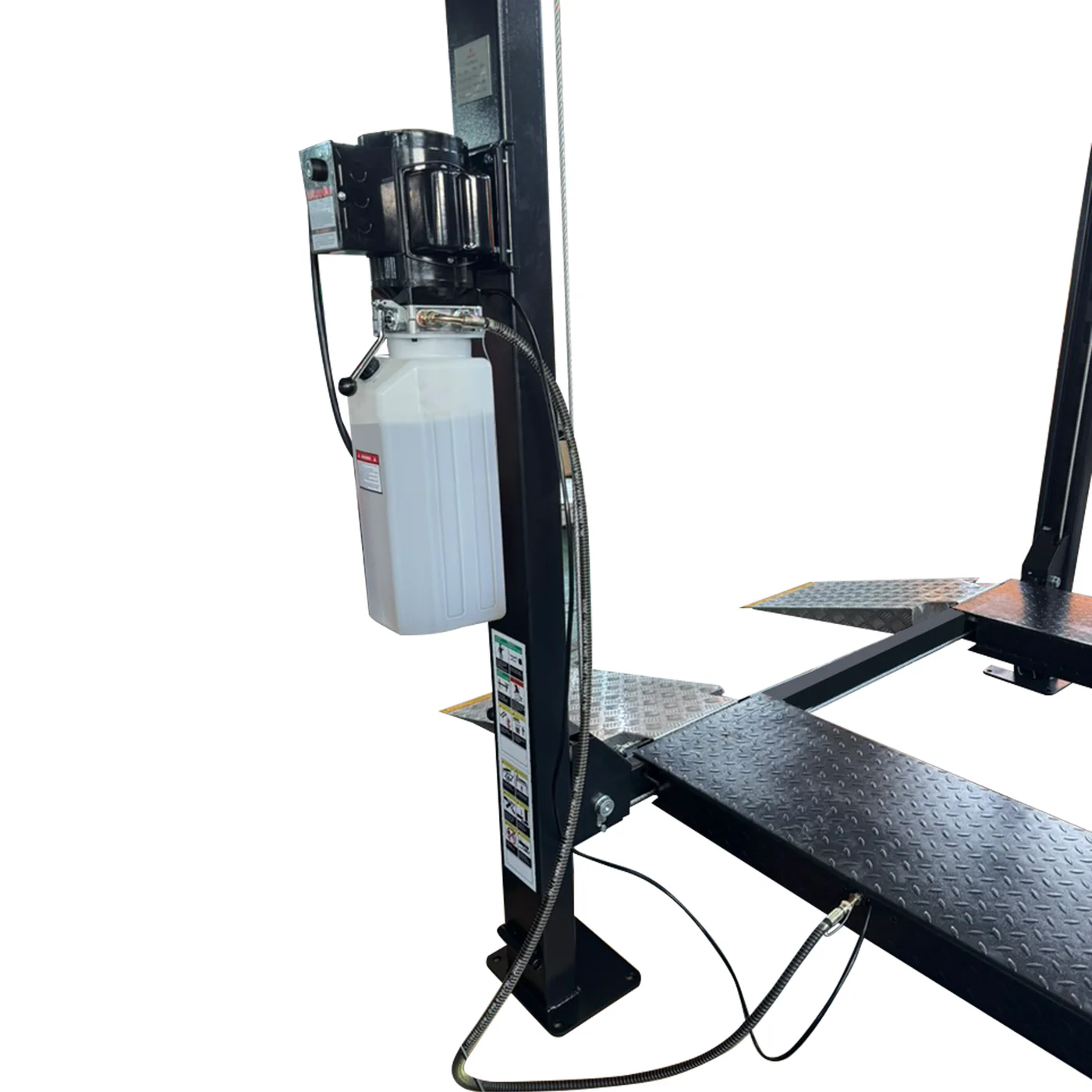

• Safer operation with a revolutionary high efficient 110V 1.5HP hydraulic power unit
• Doesn't require bolting down
• Superior corrosion resistance
• 3-Year Warranty

What’s Included:

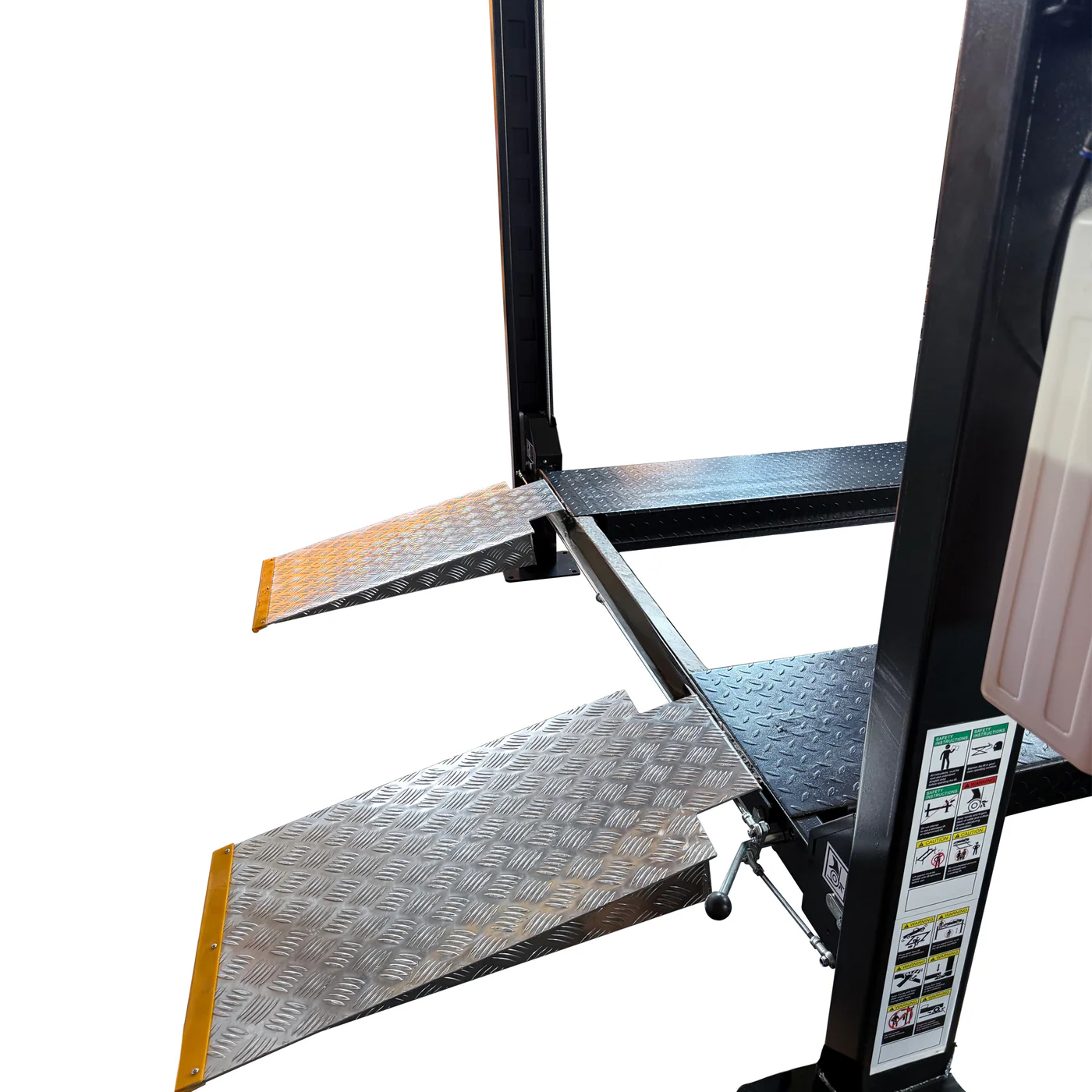

• Steel Ramps
• 3 Drip Trays
• Jack Tray
• Tire Stops
• Wheel Chocks
• Caster Kit

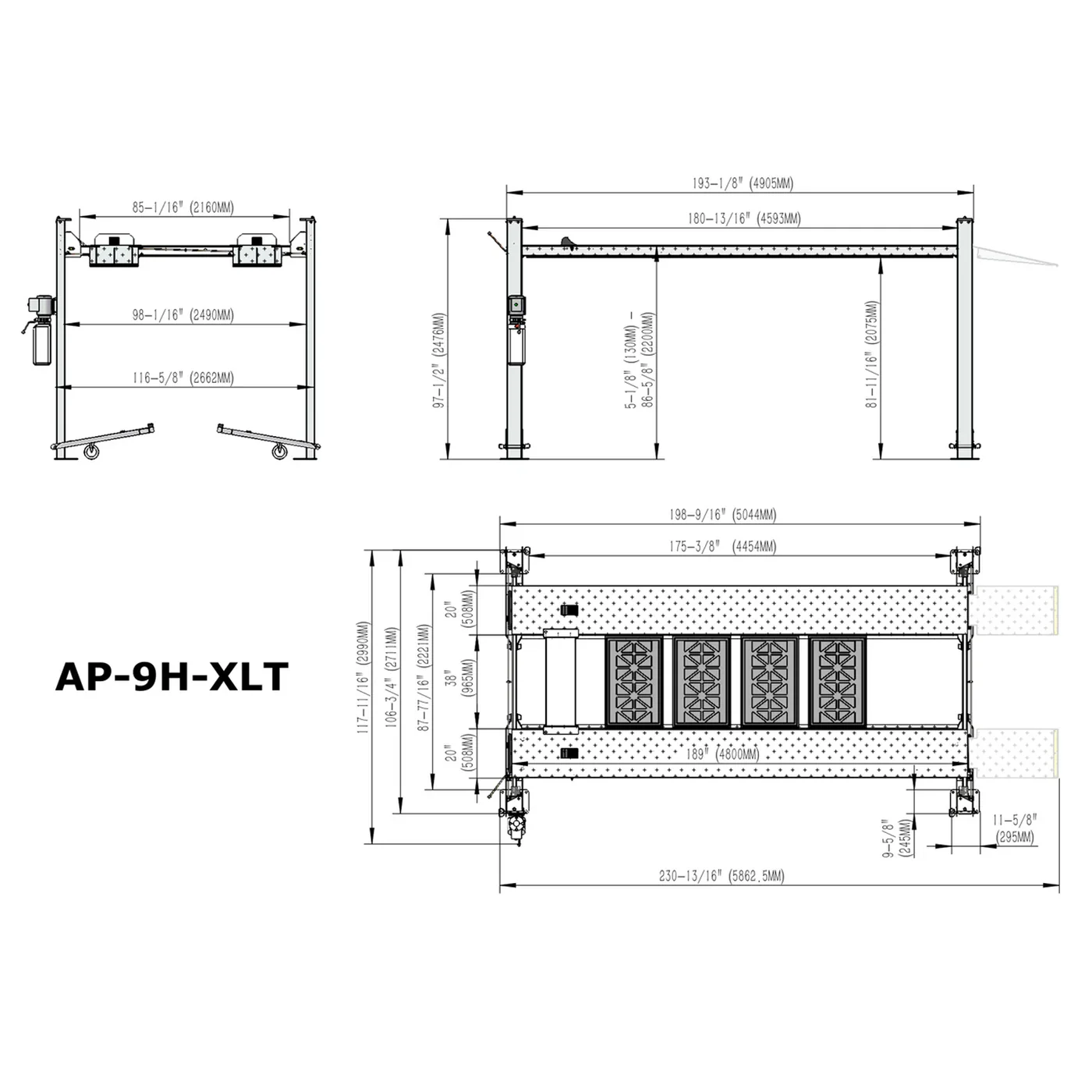

Overall Height: 98"

Overall Length: 199"

Overall Width: 118"

Drive Through Width:  98"

Maximum Lifting Height: 86"

Clearance Under Runway: 81"

Runway Size: 189" L x 20" W

Width Between Runway: 38" inside to inside.

Width Outside Runway: 78" outside to outside.
