Instalation Available: $1,375

Flooring Requirement: 4" inch concrete

Power Requirement: 110V Single Phase, 20A Breaker

Key Features

• 8,000 lb Lifting Capacity
• CE Certified Lift Structure & Hydraulic System
• Third party tested with a static load capacity of 150%
• Third party tested with a dynamic load capacity of 115%
• Easy operation & maintenance

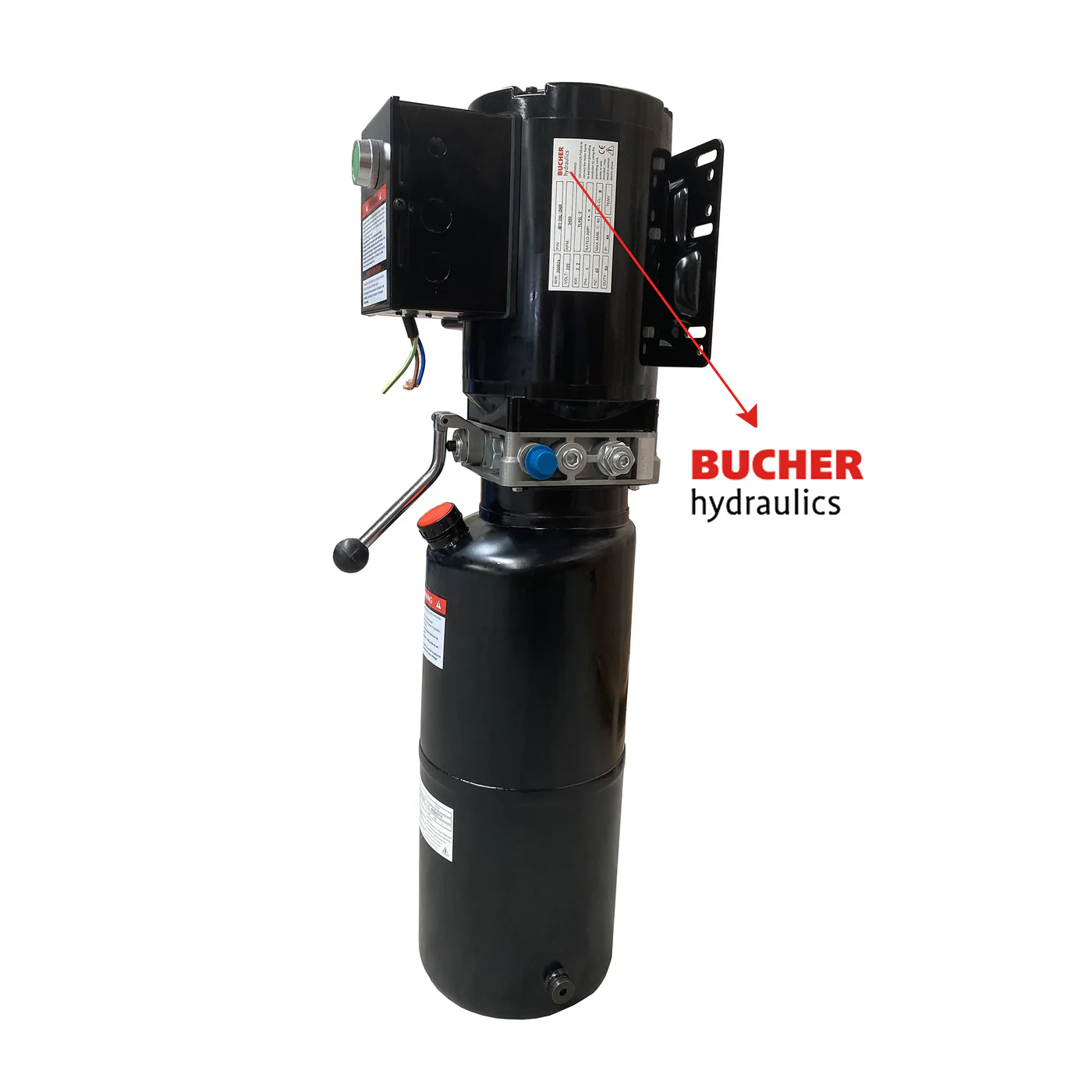

• Bucher hydraulic system
• Nylon post inserts for smooth operation
• Secondary slack-cable lock system for fail-safe protection
• Safer operation with a revolutionary high efficient 110V 1.5HP hydraulic power unit
• Doesn't require bolting down
• Superior corrosion resistance
• 3-Year Warranty

What’s Included:

• Steel Ramps

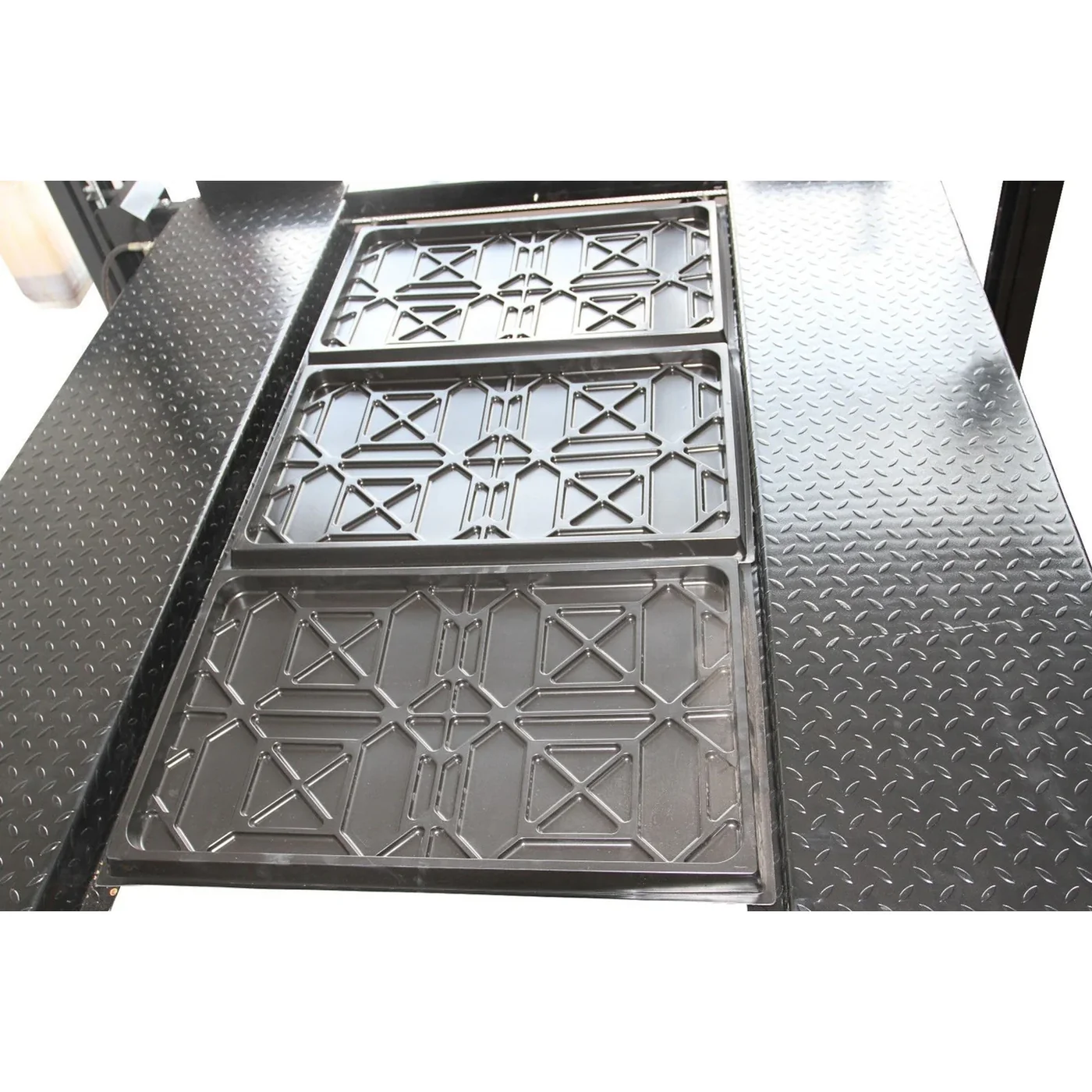

• 3 Drip Trays
• Jack Tray
• Tire Stops
• Wheel Chocks
• Caster Kit

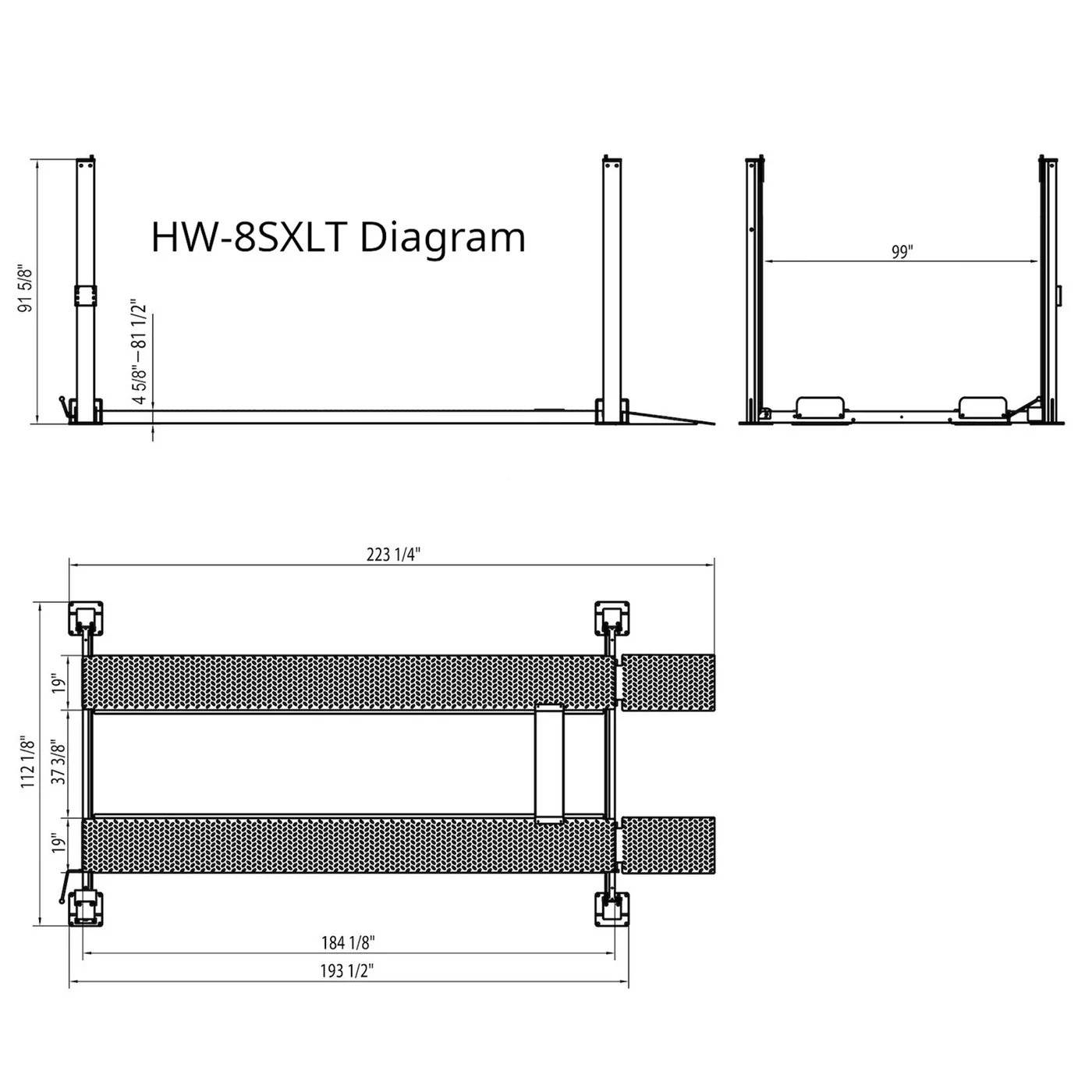

Overall Height: 91"

Overall Length: 193"

Overall Width: 112"

Drive Through Width:  99"

Maximum Lifting Height: 82"

Clearance Under Runway: 77"

Runway Size: 180" L x 18 1/2" W

Width Between Runway: 38" inside to inside.

Width Outside Runway: 75" outside to outside.
