Installation Available:  $1,875

Flooring Requirement: Reinforced 6" inch concrete or 4" inch concrete for vehicles under 9,000lbs

Power Requirement: 220V Single Phase, 20A Breaker

Key Features

• 10,000 lb Lifting Capacity
• CE-certified lift structure and hydraulic system
• Third-party tested with a static load capacity of 150%
• Third-party tested with a dynamic load capacity of 115%
• Easy operation and maintenance

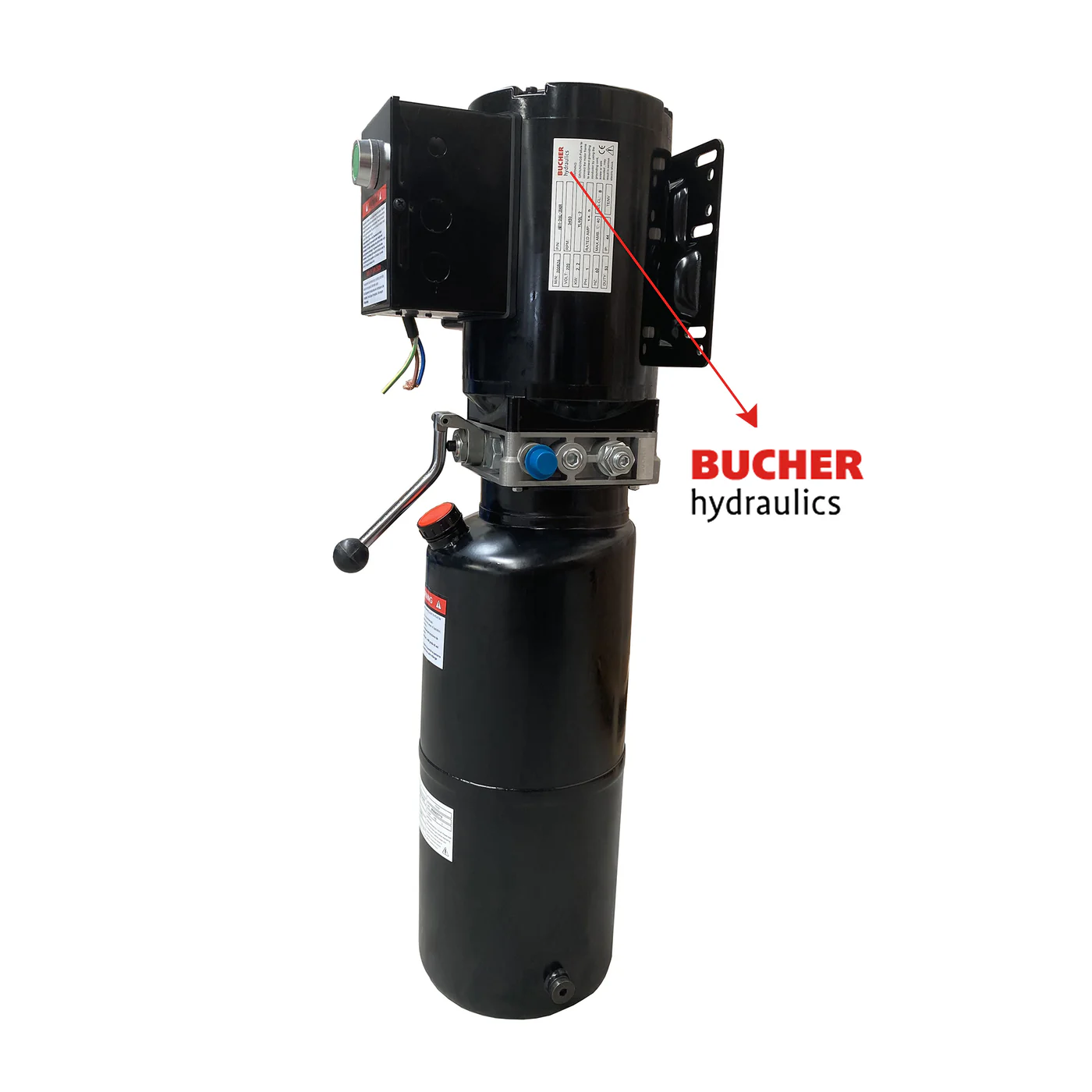

• Bucher hydraulic system
• Single-point safety lock release
• Manual lowering operation by pressing the lever
• Relief valve built-in power pump to prevent overloading

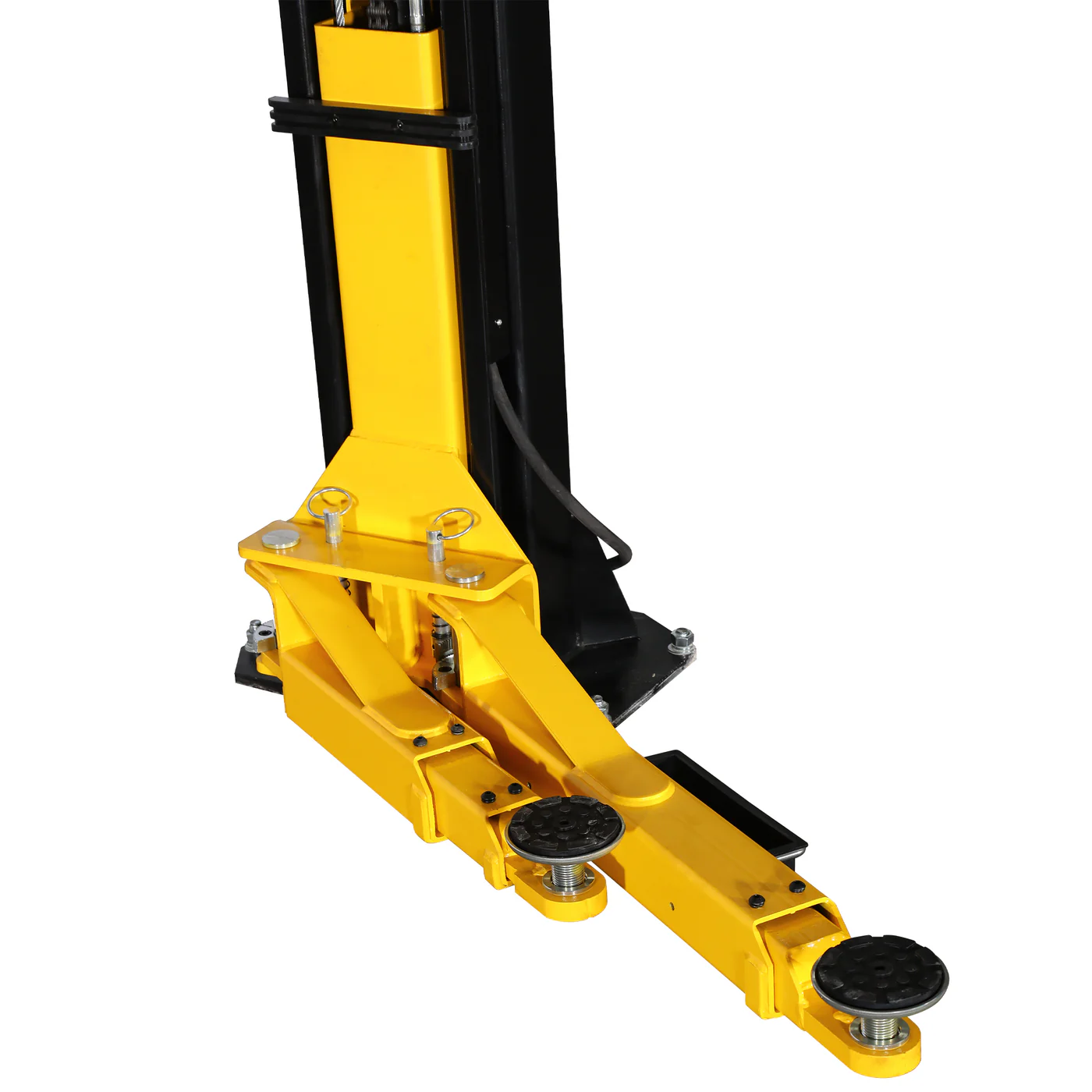

• Automatic arm lock restraints
• Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
• Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
• 3-Year Warranty

What’s Included:

• 4pc Adjustable Screw Pads
• 4pc Height Extension Adapters
• 10 Anchor Bolts
• 10 Shims
• 2 Tool Trays
• 2 Toe Guards

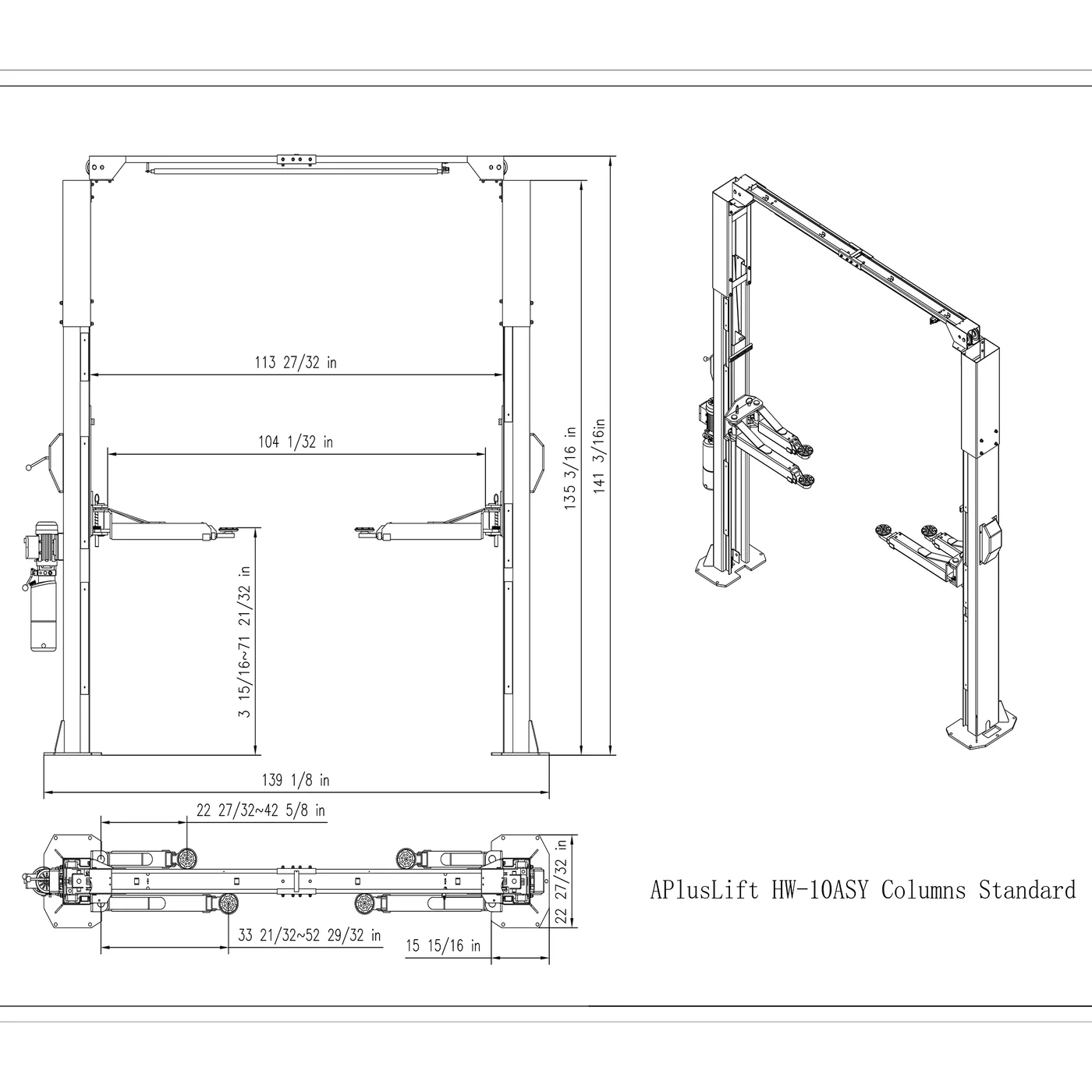

Overall Height: 141 3/16"

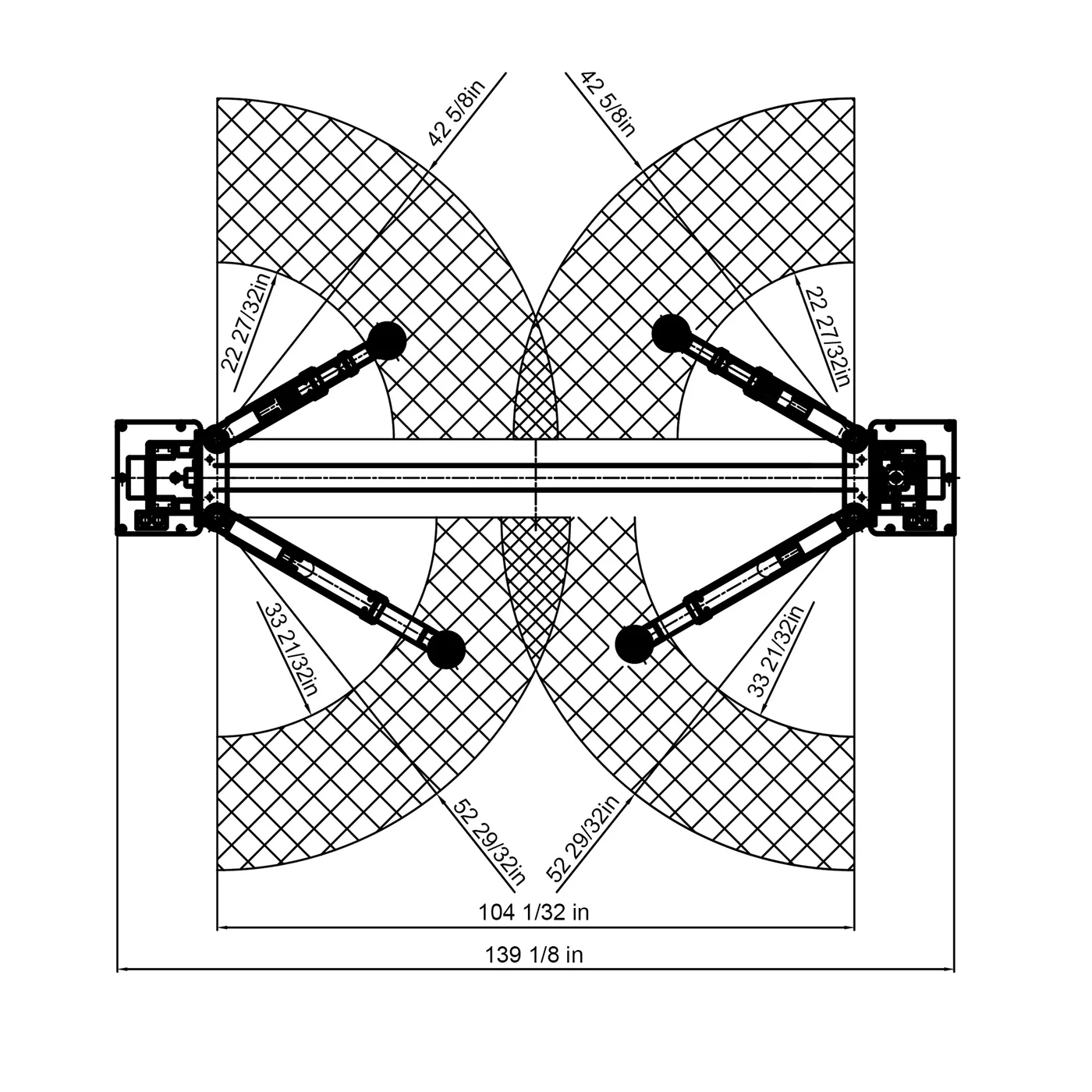

Overall Width: 139 1/8" (standard) 140 15/32" (post rotated)

Column To Column Width: 113" (symmetric) 107" (asymmetric) inside to inside, 127" (symmetric) outside to outside

Drive Through Width:  104" (symmetric) 97" (asymmetric)

Maximum Lift Height: 81" with adapters, 75" without

Minimum Height Of Adjustable Pads: 4" from ground
