Installation Available:  $1,875

Flooring Requirement: Reinforced 6" inch concrete or 4" inch concrete for vehicles under 9,000lbs

Power Requirement: 220V Single Phase, 20A Breaker

Key Features

• 10,000 lb Lifting Capacity
• ALI CERTIFIED
• Easy operation and maintenance
• Dual Direct Drive Hydraulic Cylinders
• Bucher hydraulic system
• Relief valve built-in power pump to prevent overloading

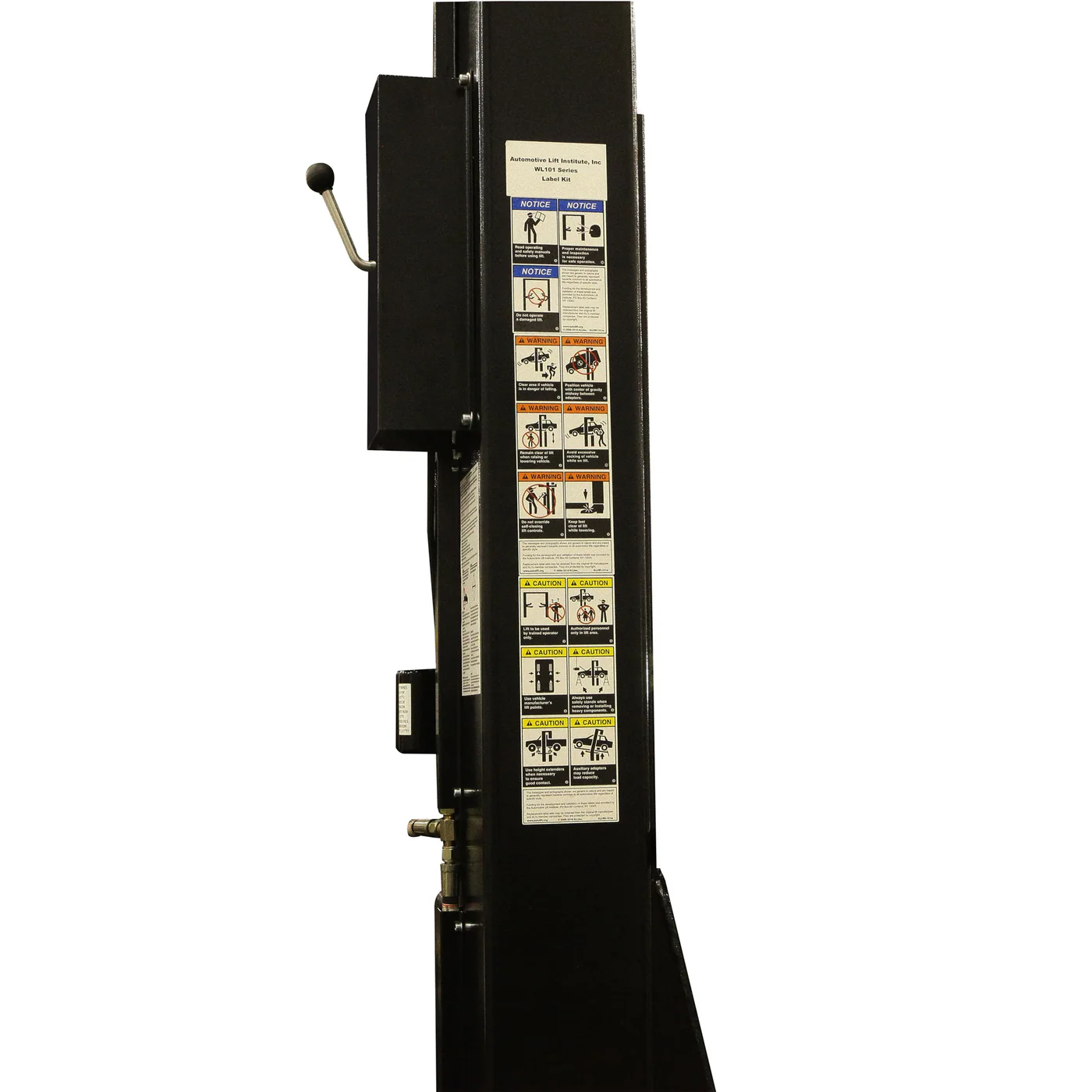

• Single-point safety lock release
• Manual lowering operation by pressing the lever
• Up-limit switch to protect cylinders working stroke used in safe length scope
• Stiffened base plate 13/16" thickness

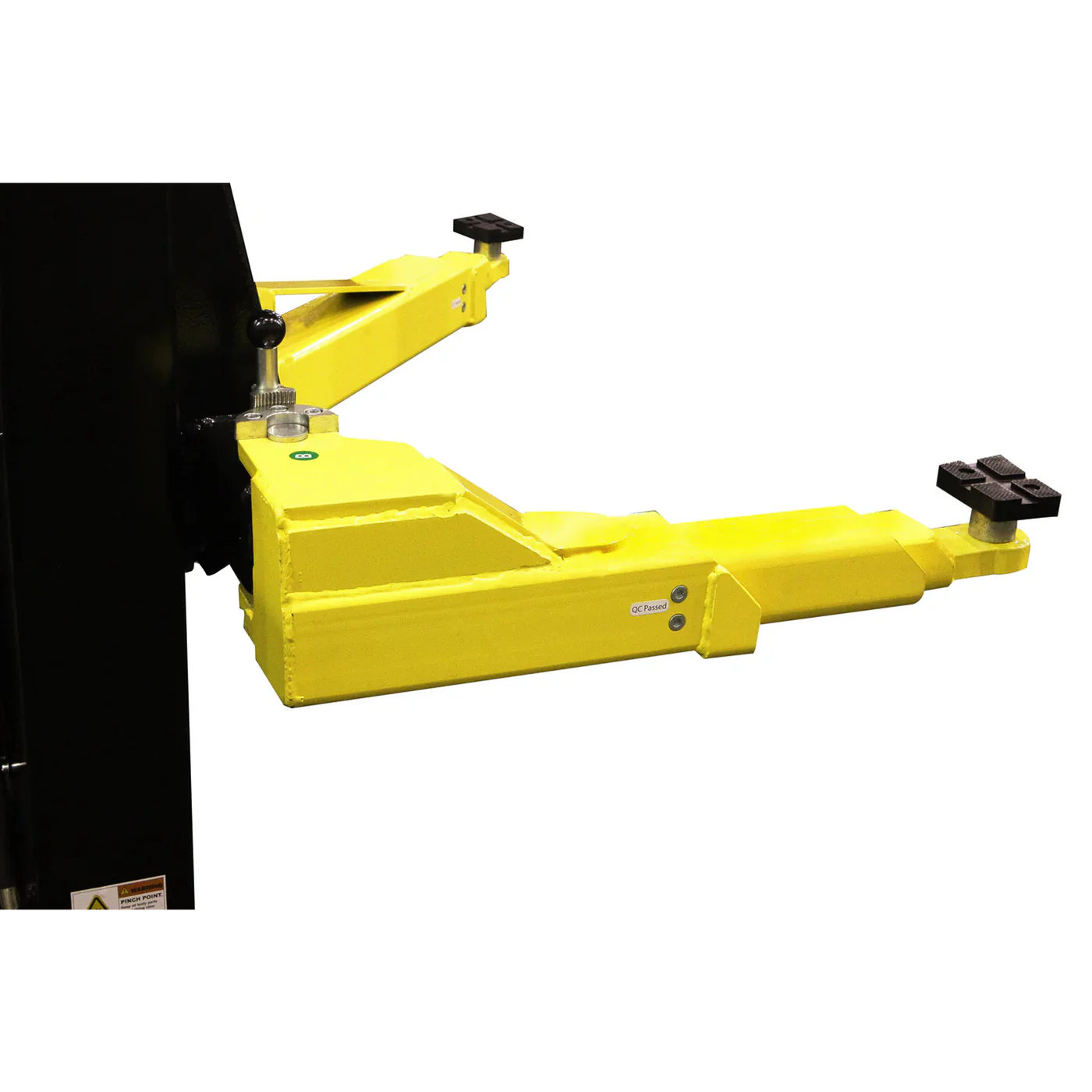

• Automatic arm lock restraints
• Three variable drive through 88 1/8", 94 1/16", 100"!
• 3-Year Warranty

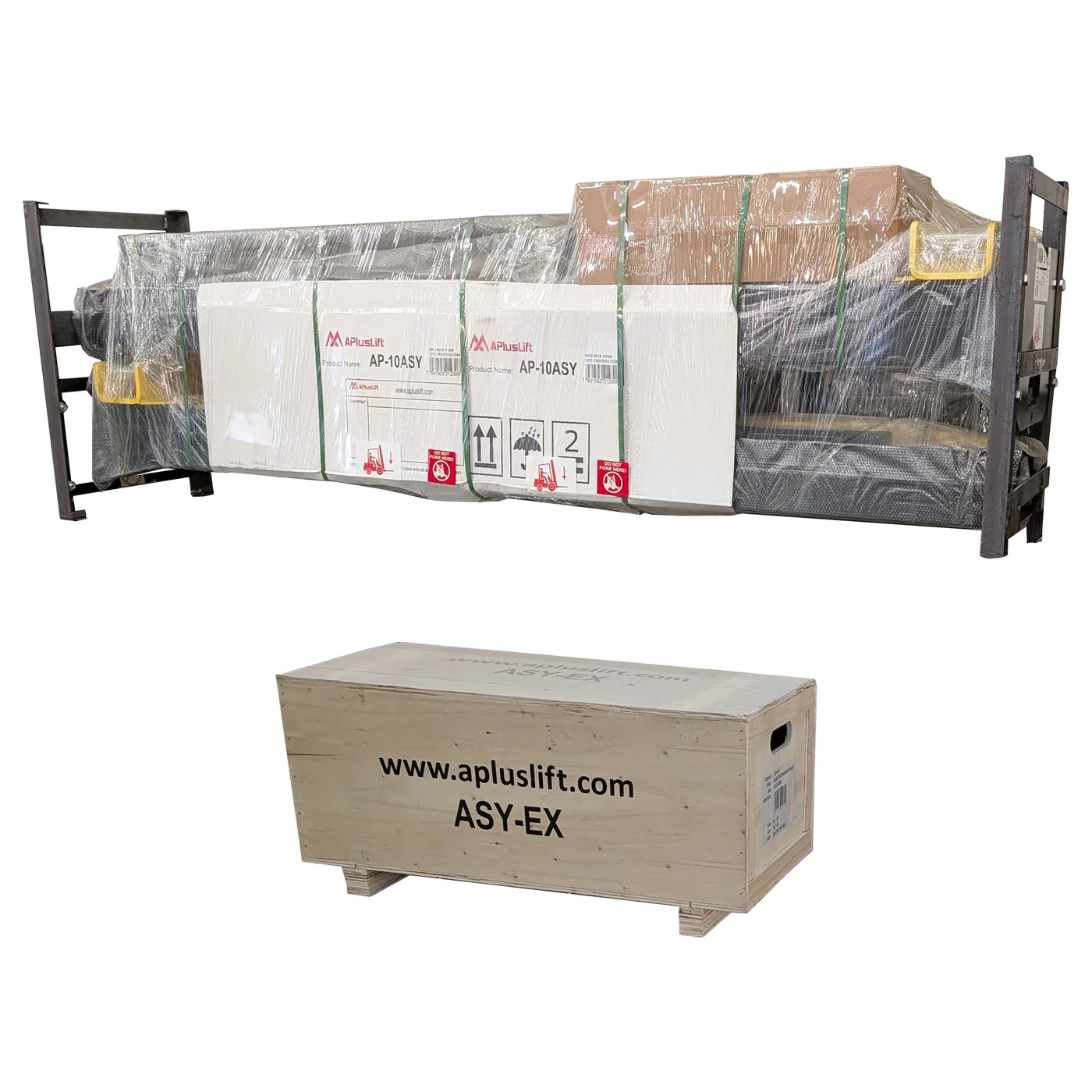

What’s Included:

• 4pc 6" Inch Height Extension Adapters
• 4pc 3" Inch Height Extension Adapters
• 10 Anchor Bolts
• 10 Shims

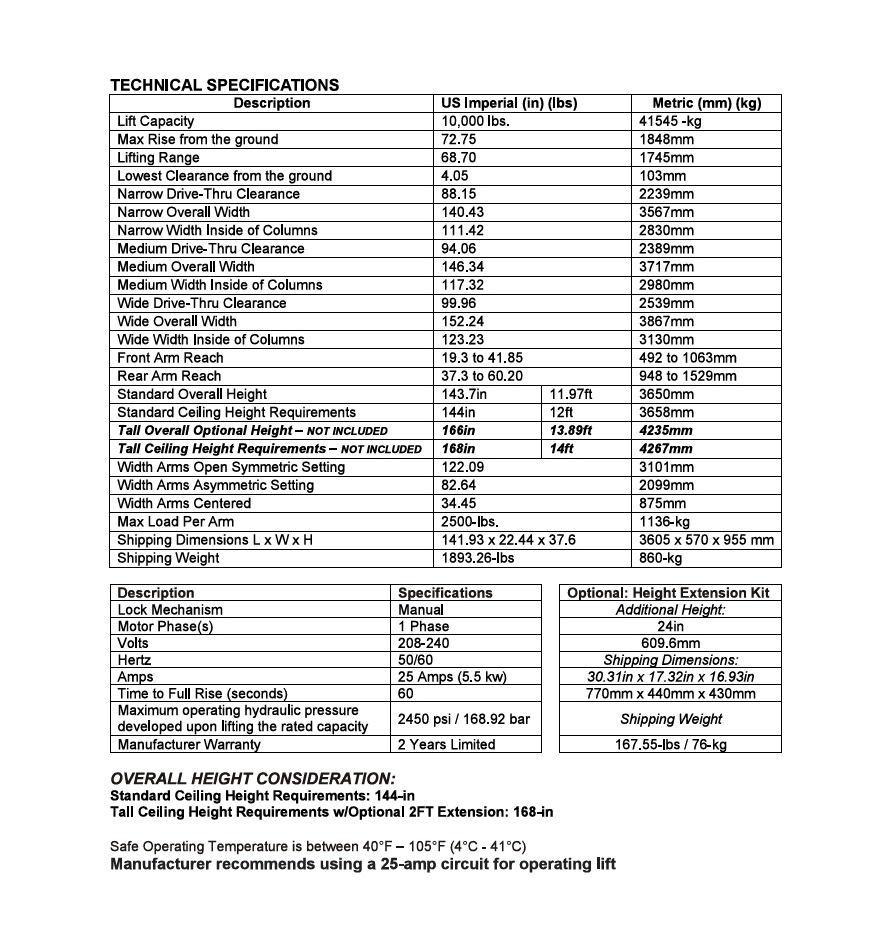

Overall Height: 143 3/4"

Overall Width: 140 7/16" (narrow spacing) 146 3/8" (medium spacing) 152 1/4" (wide spacing)

Column To Column Width: 97 1/8" (narrow spacing) 103 1/16" (medium spacing) 109" (wide spacing) inside to inside, 110 7/8" (narrow spacing) 116 13/16" (medium spacing) 122 3/4" (wide spacing) outside to outside

Drive Through Width:  88 1/8" (narrow spacing) 94 1/16" (medium spacing) 100" (wide spacing)

Maximum Lift Height: 78" with adapters, 69" without

Minimum Height Of Adjustable Pads: 4" from ground
