Installation Available: $1,375

Flooring Requirement: Reinforced 6" inch concrete / 4" inch concrete for vehicles under 9,000lbs

Power Requirement: 220V Single Phase, 20A Breaker

Key Features

• 10,000 lb Lifting Capacity
• CE Certified Lift Structure & Hydraulic System
• Third party tested with a static load capacity of 150%
• Third party tested with a dynamic load capacity of 115%
• Easy operation & maintenance
• Durable hydraulic system
• Double point safety lock release
• Manual lowering operation by pressing lever
• Relief valve built in power pump to prevent overloading

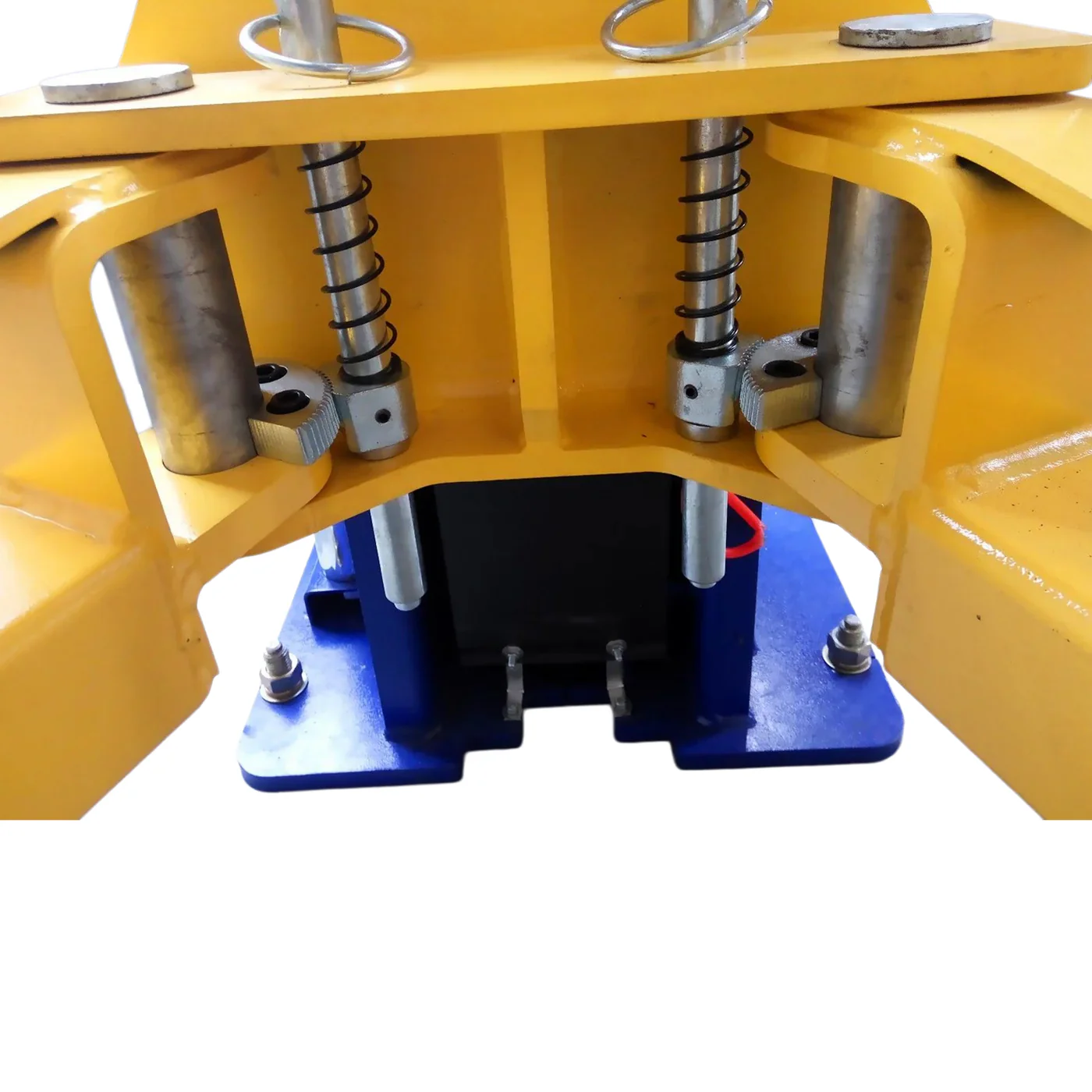

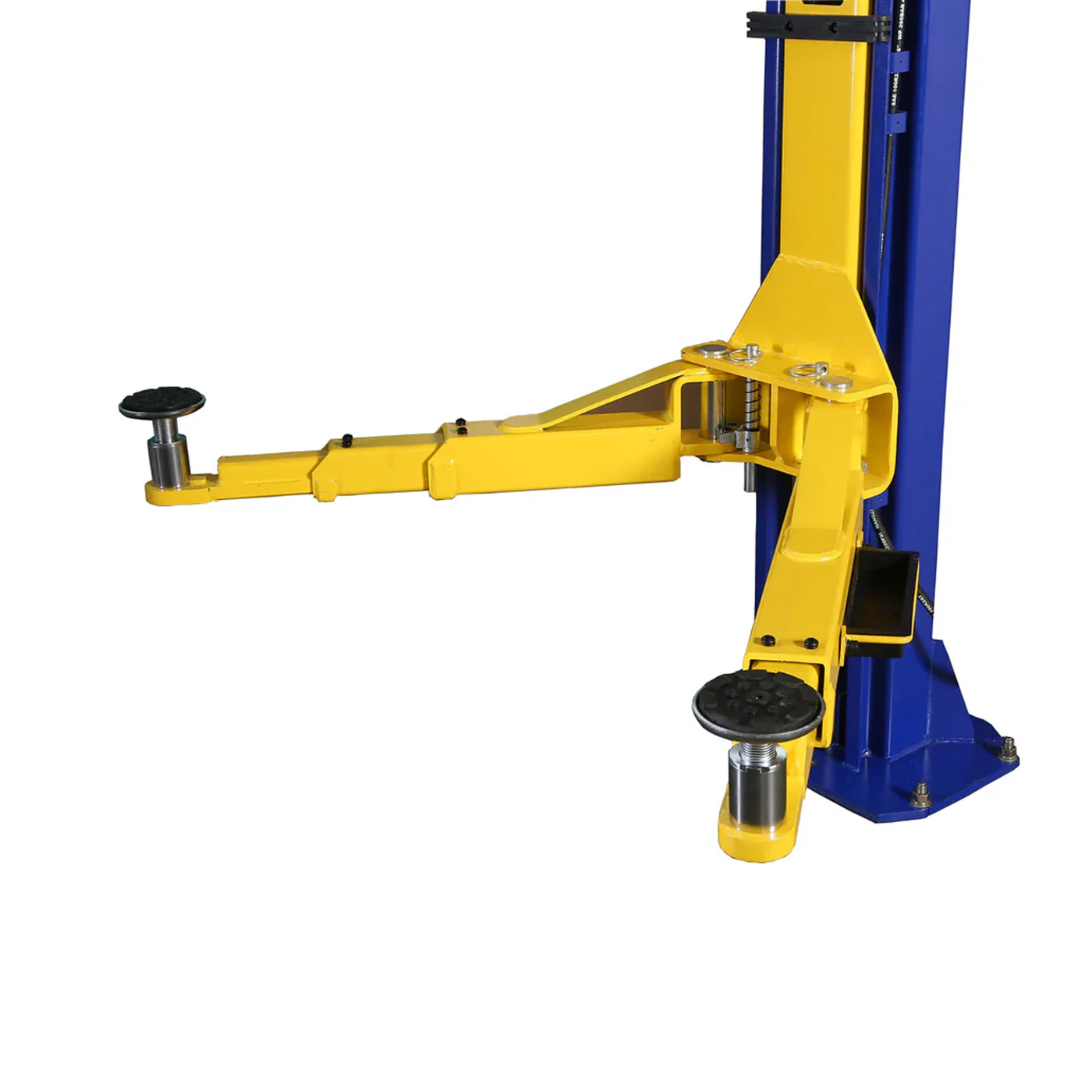

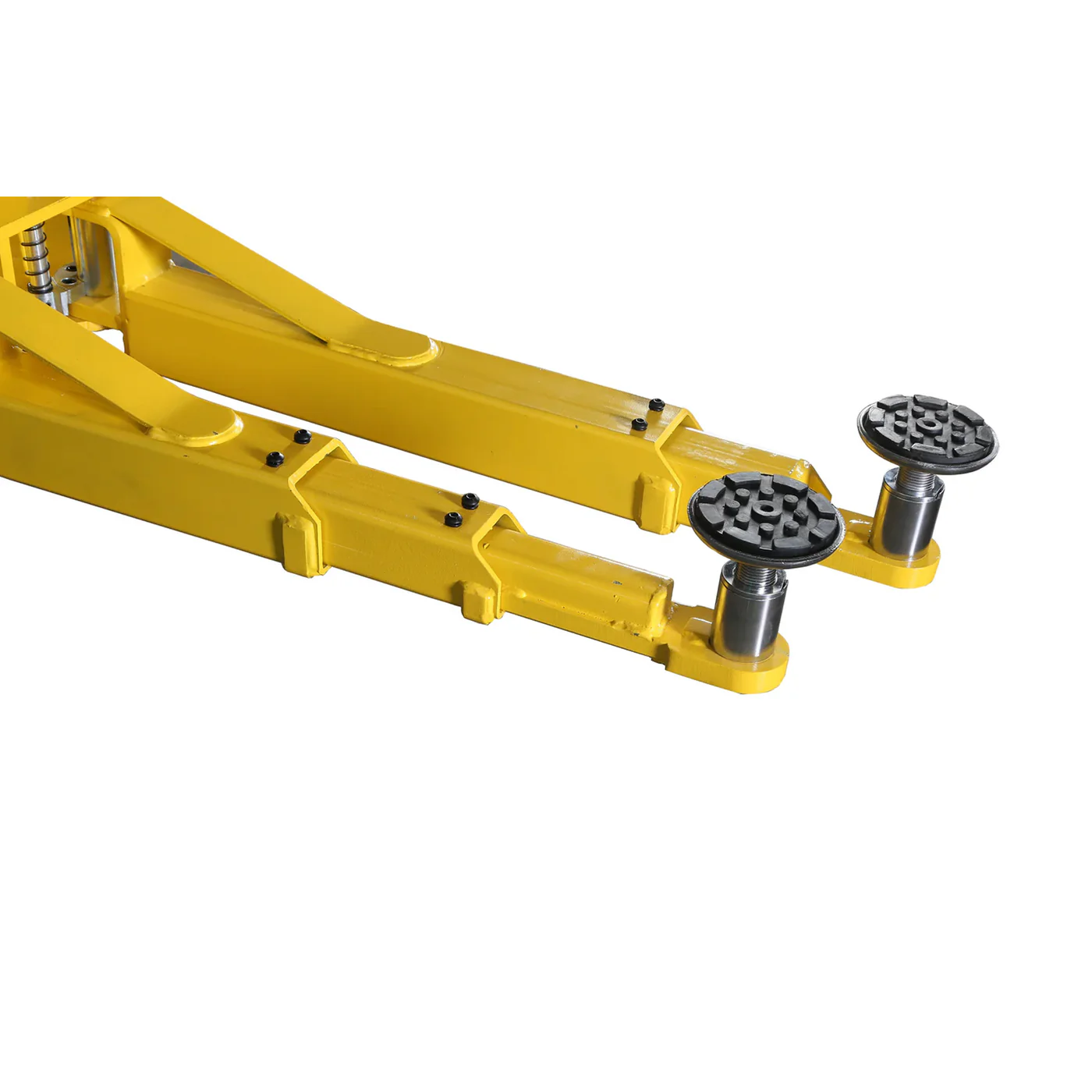

• Automatic arm lock restraints
• Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process & increase cable life
• Upgraded floor plate, beveled diamond plate steel 5/32" with supporting bracket.
• 3-Year Warranty

What’s Included:

• 4pc Adjustable Screw Pads
• 4pc Height Extension Adapters
• 10 Anchor Bolts
• 10 Shims
• 2 Tool Trays
• 2 Toe Guards

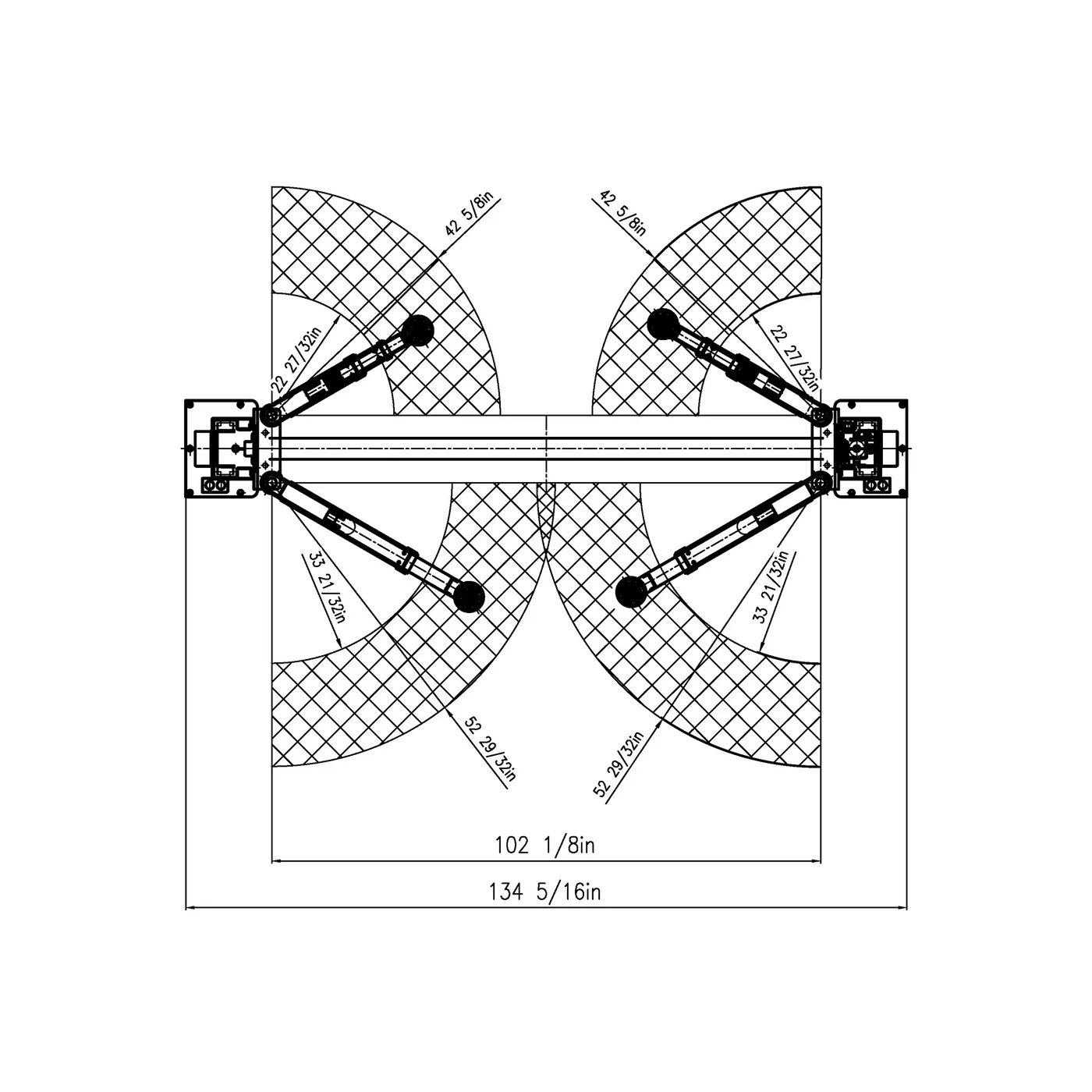

Overall Height: 113 5/8"

Overall Width: 134 5/16"

Column To Column Width: 109" inside to inside, 123" outside to outside

Drive Through Width:  100"

Maximum Lift Height: 81" with adapters, 75" without

Minimum Height Of Adjustable Pads: 4" from ground

Floor Plate Cross Section: 10 5/8"W x 1-7/8"H
