Installation Available:  $1,875

Flooring Requirement: Reinforced 6" inch concrete

Power Requirement: 220V Single Phase, 20A Breaker

Key Features

• 14,000 lb Lifting Capacity
• CE-certified lift structure and hydraulic system
• Third-party tested with a static load capacity of 150%
• Third-party tested with a dynamic load capacity of 115%
• Easy operation and maintenance

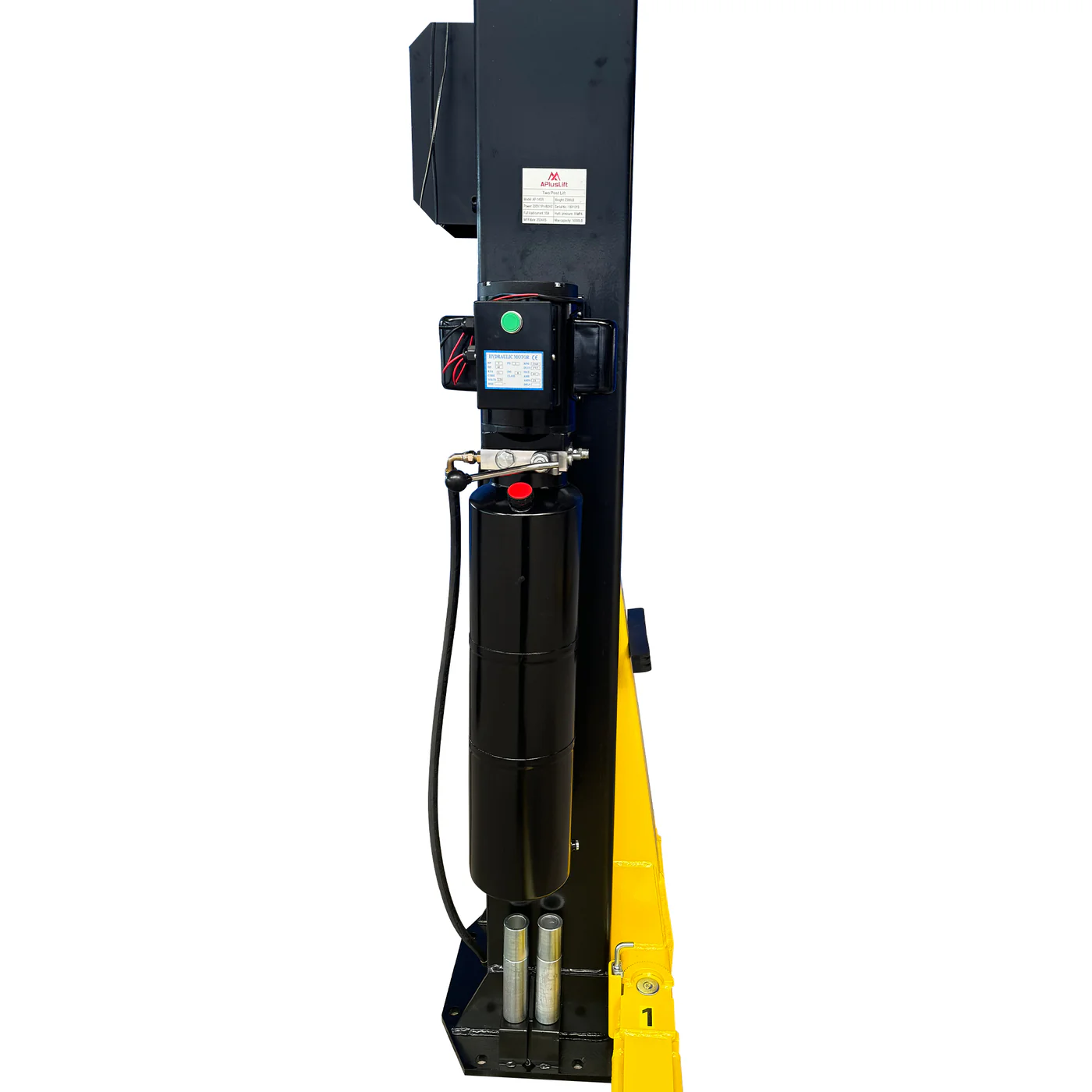

• Bucher hydraulic system
• Dual direct drive hydraulic cylinders
• Single-point safety lock release
• Manual lowering operation by pressing the lever
• Relief valve built-in power pump to prevent overloading

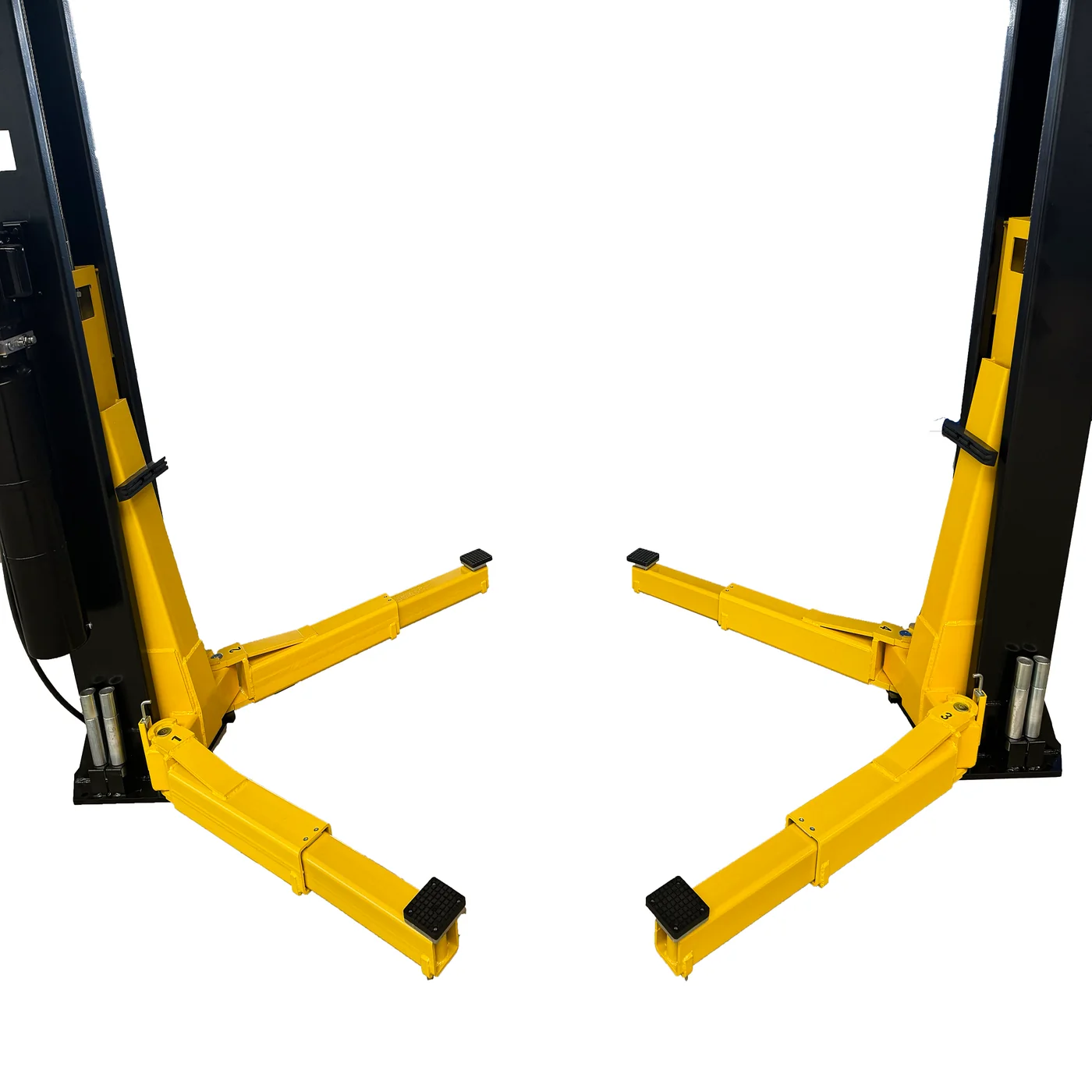

• Automatic arm lock restraints
• Up-limit switch to protect cylinders working stroke used in safe length scope
• 3-Year Warranty

What’s Included:

• 4pc 5 1/2" Inch Height Extension Adapters
• 4pc 2 3/4" Inch Height Extension Adapters
• 10 Anchor Bolts
• 10 Shims

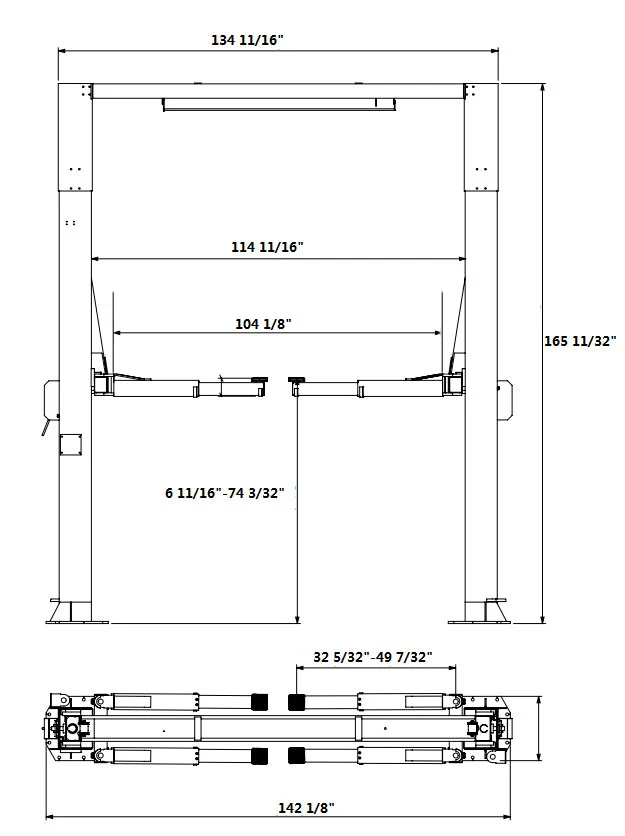

Overall Height: 165 11/32"

Overall Width: 142 1/8"

Column To Column Width: 114 11/16" inside to inside, 134 3/8" outside to outside

Drive Through Width:  104 1/8"

Maximum Lift Height: 79 19/32" with adapters, 74 3/32" without

Minimum Height Of Adjustable Pads: 6 11/16" from ground
