Installation Available:  $1,425

Flooring Requirement: Reinforced 6" inch concrete or 4" inch concrete for vehicles under 9,000lbs

Power Requirement: 220V Single Phase, 20A Breaker

Key Features

• 12,000 lb Lifting Capacity
• CE Certified Lift Structure & Hydraulic System
• Third party tested with a static load capacity of 150%
• Third party tested with a dynamic load capacity of 115%
• Easy operation & maintenance

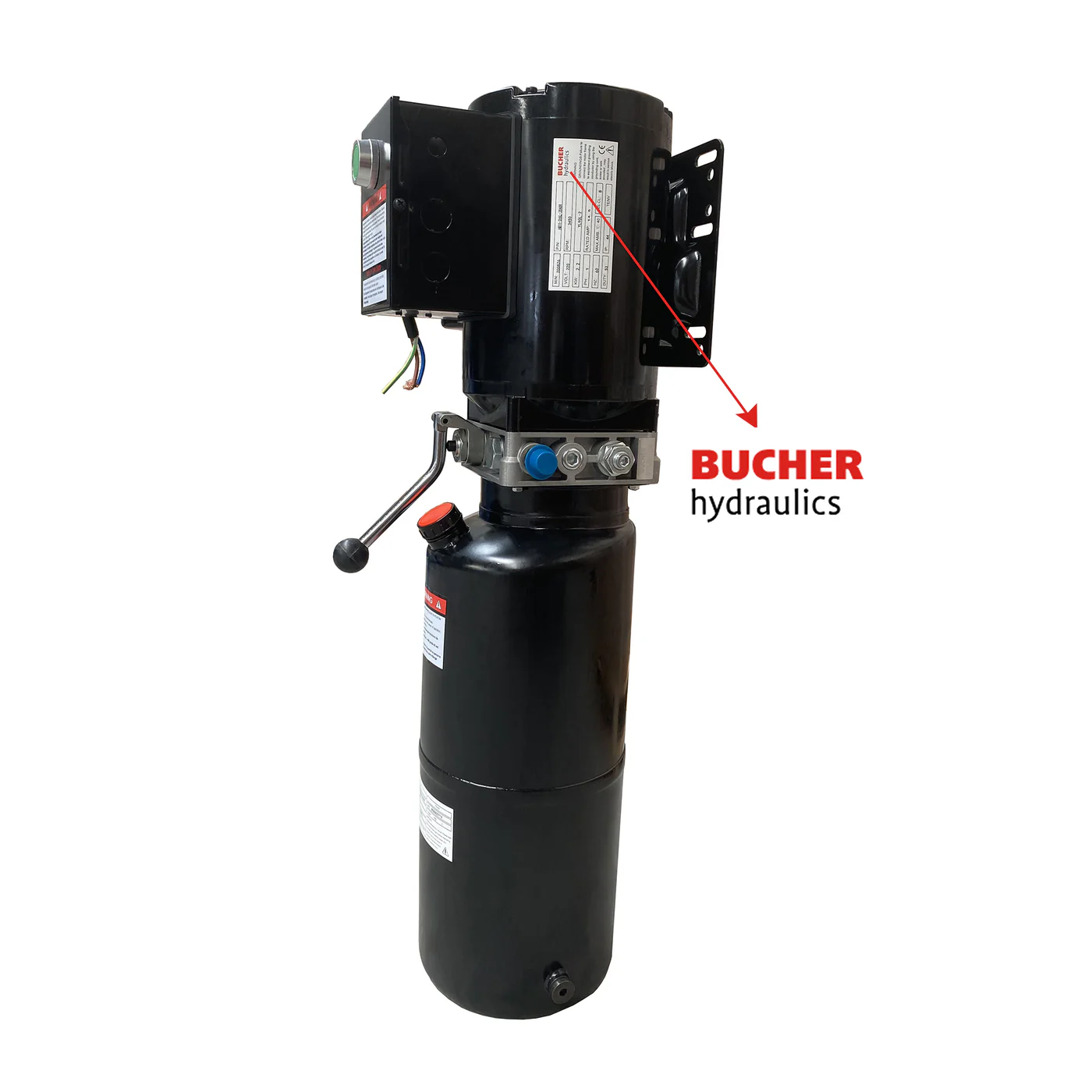

• Bucher hydraulic system
• Dual hydraulic cylinders, direct drive
• Double point safety lock release
• Manual lowering operation by pressing the lever
• Relief valve built in power pump to prevent overloading

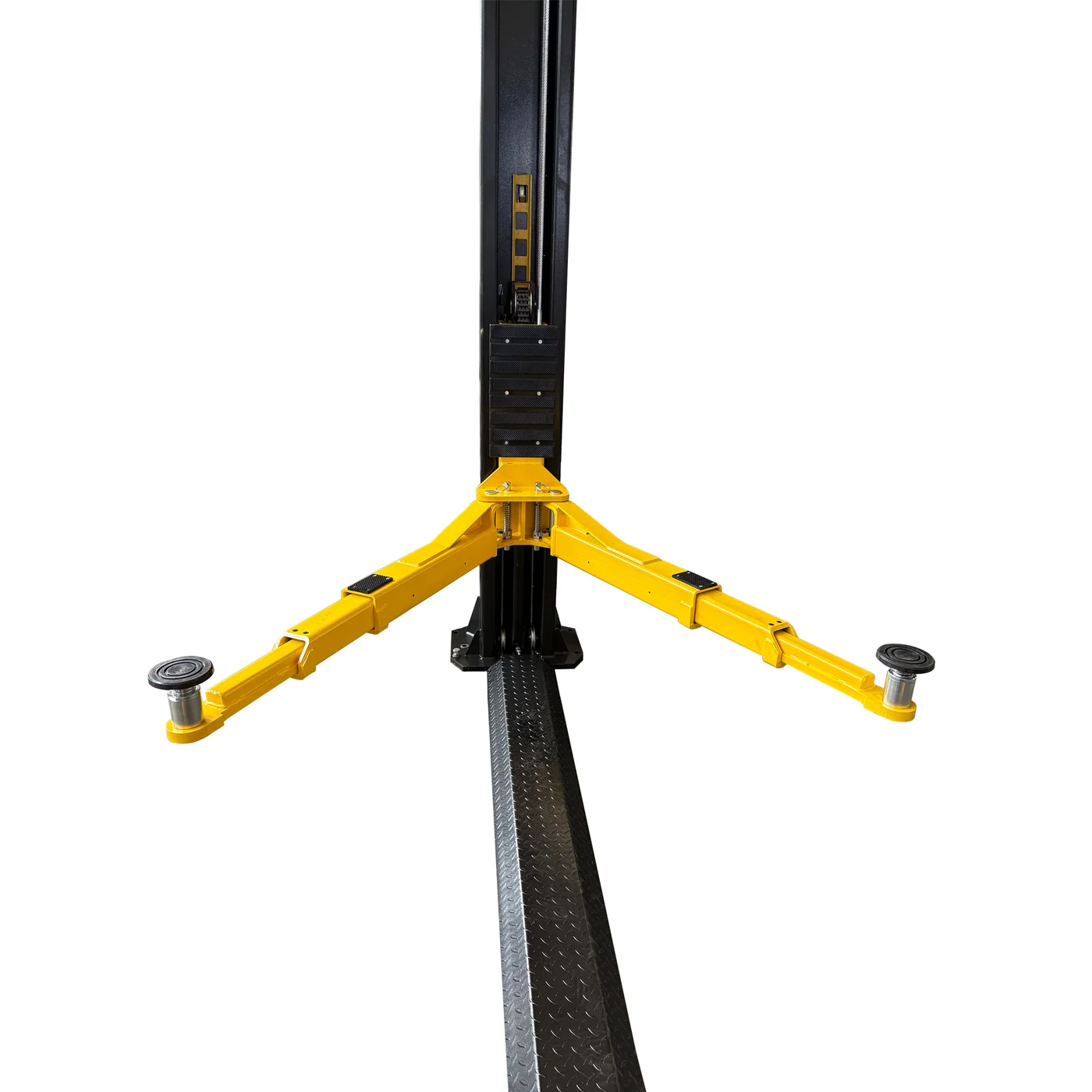

• Automatic arm lock restraints
• Up-limit switch to protect cylinders working stroke used in safe length scope
• Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
• 3-Year Warranty

What’s Included:

• 4pc Adjustable Screw Pads
• 4pc 3" Inch Height Extension Adapters
• 10 Anchor Bolts
• 10 Shims
• 2 Tool Trays
• 2 Toe Guards

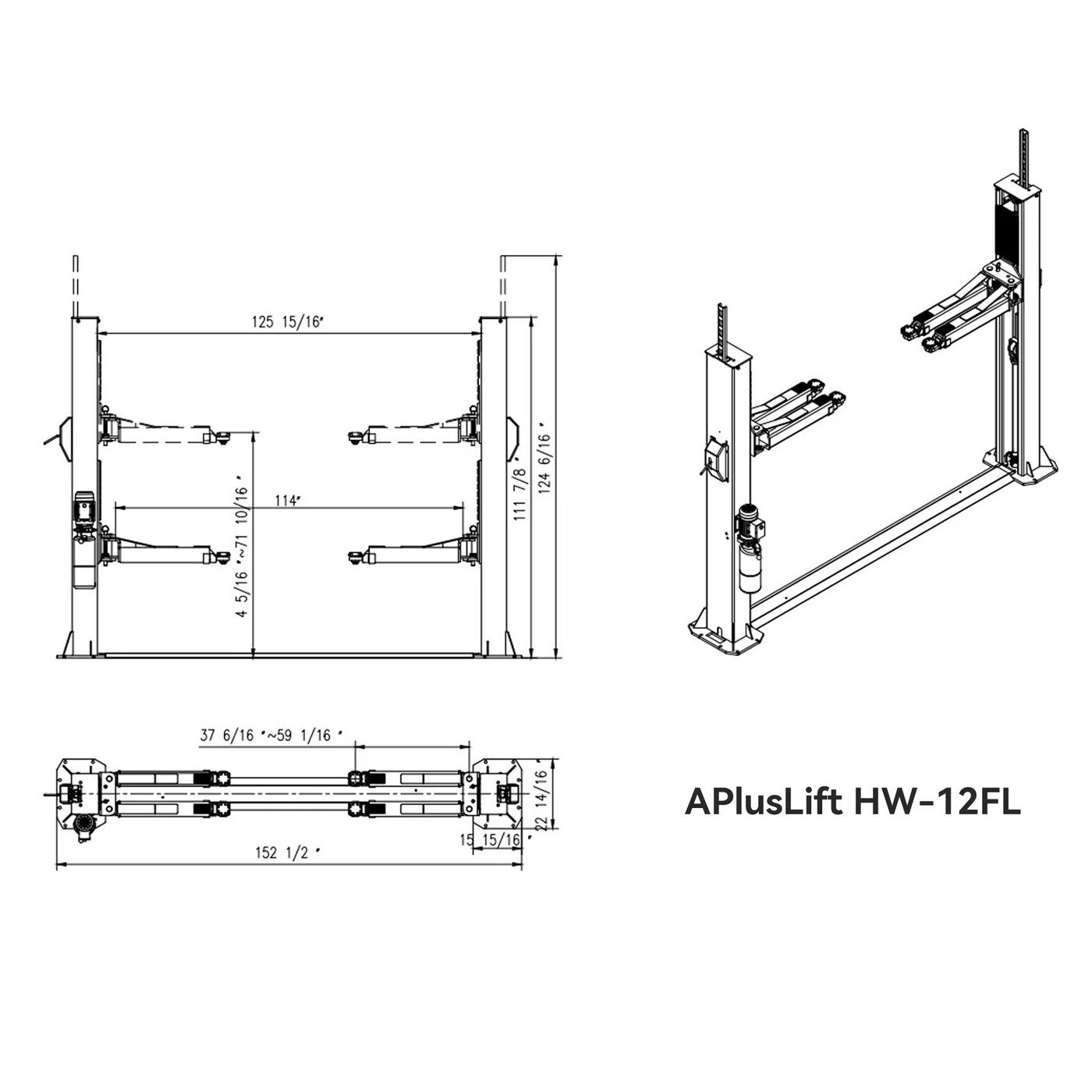

Overall Height: 124 7/16"

Overall Width: 157 9/16"

Column To Column Width: 126" inside to inside

Drive Through Width:  114"

Maximum Lift Height: 74 11/16" with adapters, 71 11/16" without

Minimum Height Of Adjustable Pads: 4 3/8" from ground

Column Cross Section: 14 3/8"L x 7 13/16"W
