Installation Available: $350

Flooring Requirement: Standard Concrete

Power Requirement: 110V Single Phase , 20A Breaker

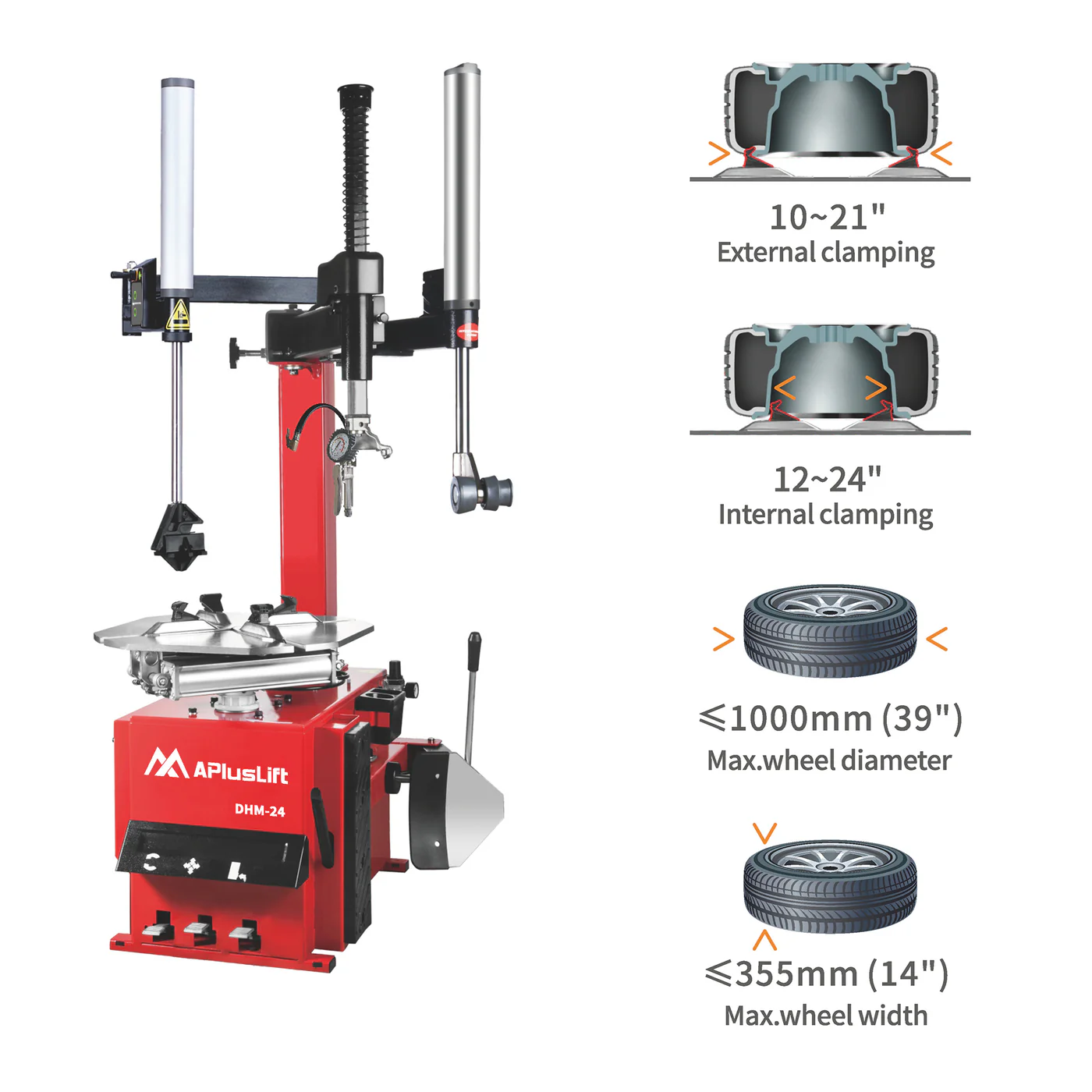

Key Features DHM-24 Tire Machine

• CE Certificate
• Rim clamping outside 10"-21"
• Rim clamping inside 12"-24" (7"-24" with Motorcycle/ATV Adapters)
• Maximum tire diameter 39"(1000mm)
• Maximum tire width 14" (355mm)

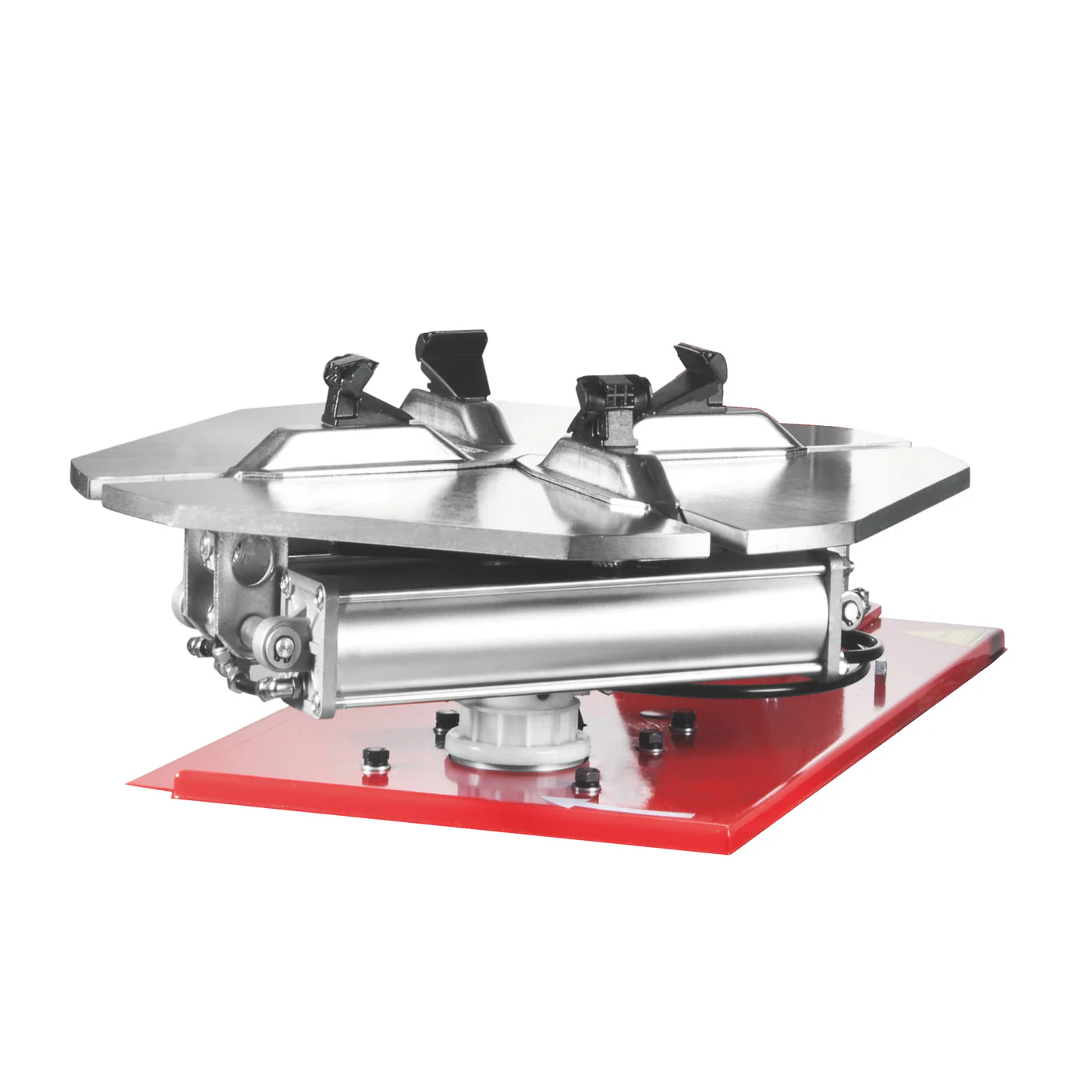

• Central turntable with 24” clamping size
• Operating pressure 120psi (8 Bar)

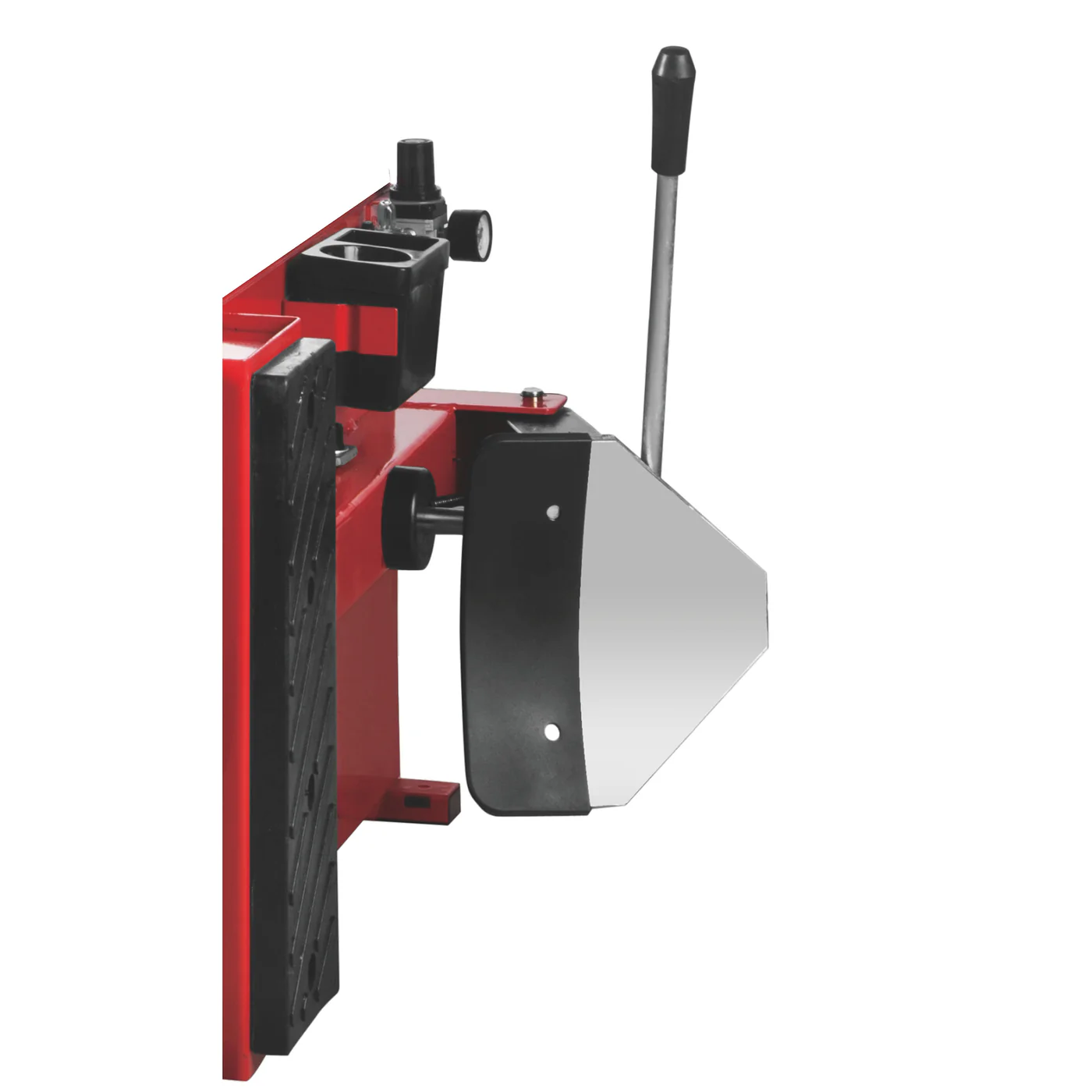

• Bead break force 5600LB pneumatic piston
• Noise level less than 60dB
• Rugged and durable one-piece casting jaws
• Adjustable pressing shovel
• Machine body size: 15 19/32" x 30 5/32" x 20 3/16
• 3-Year Warranty

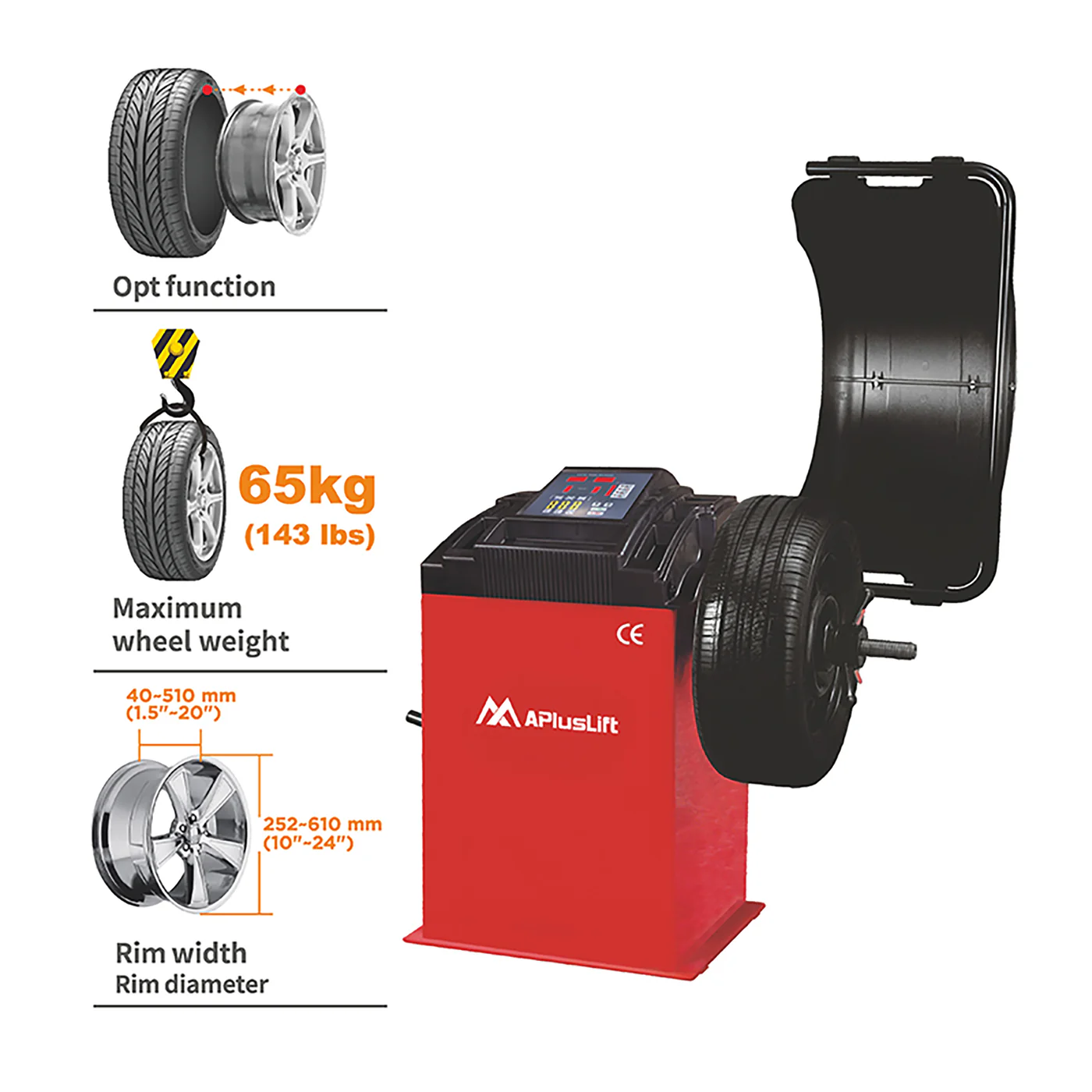

Key Features WBS-500 Wheel Balancer

• CE Certificate
• Rim diameter 10"-24"
• Rim width 1.5"-20"
• Maximum tire diameter 39"
• Maximum tire width 19.5"
• Maximum wheel weight 143LB
• Shaft size 36mm
• Balancing accuracy: -1g to +1g
• Cycle time 8 seconds & fault self-diagnosis & detection function

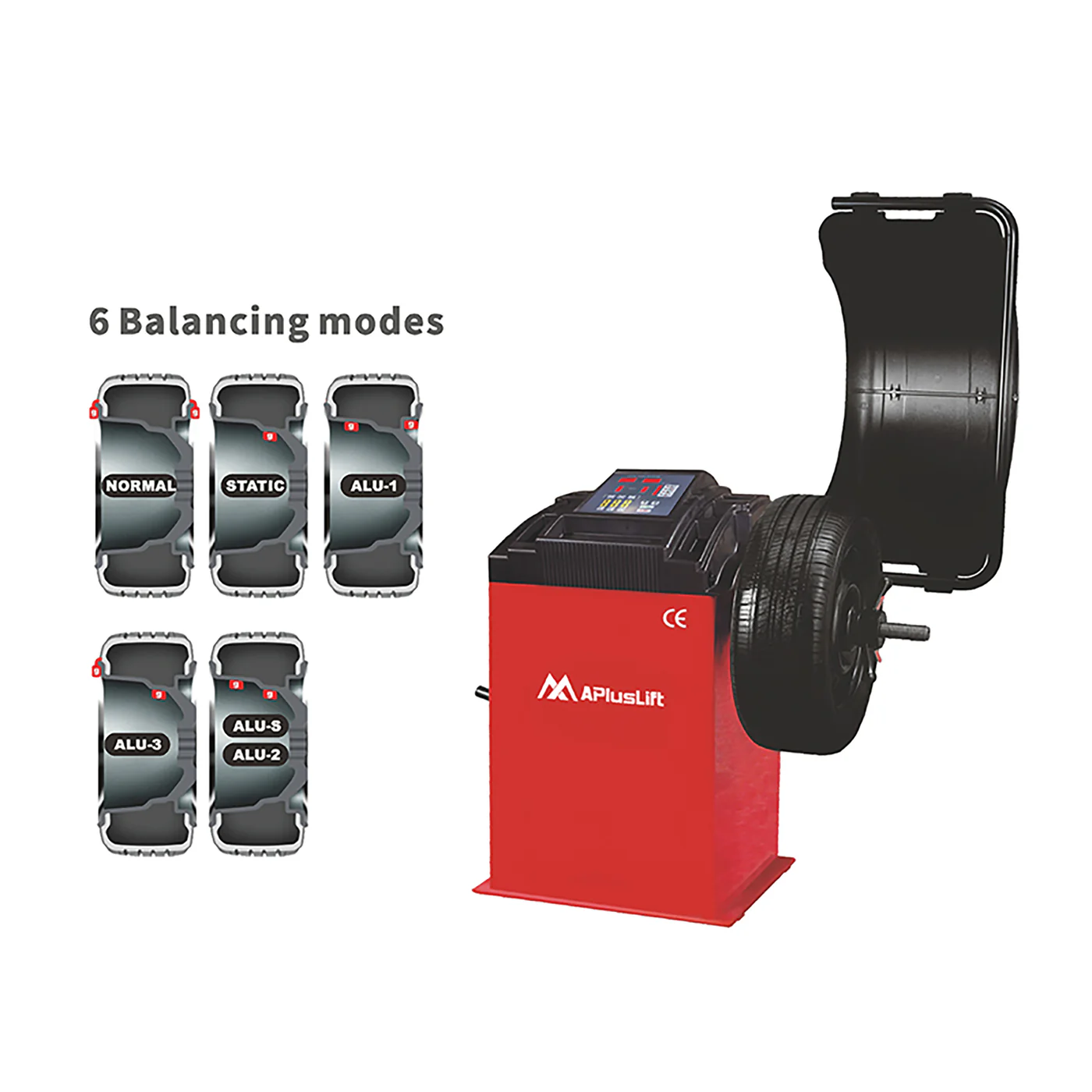

• Normal mode, static mode, ALU 1-3 mode, ALU-S mode
• Noise level less than 70dB
• Machine body size(with protector): 43 3/16" x 29 1/32" x 59 1/16"
• 3-Year Warranty

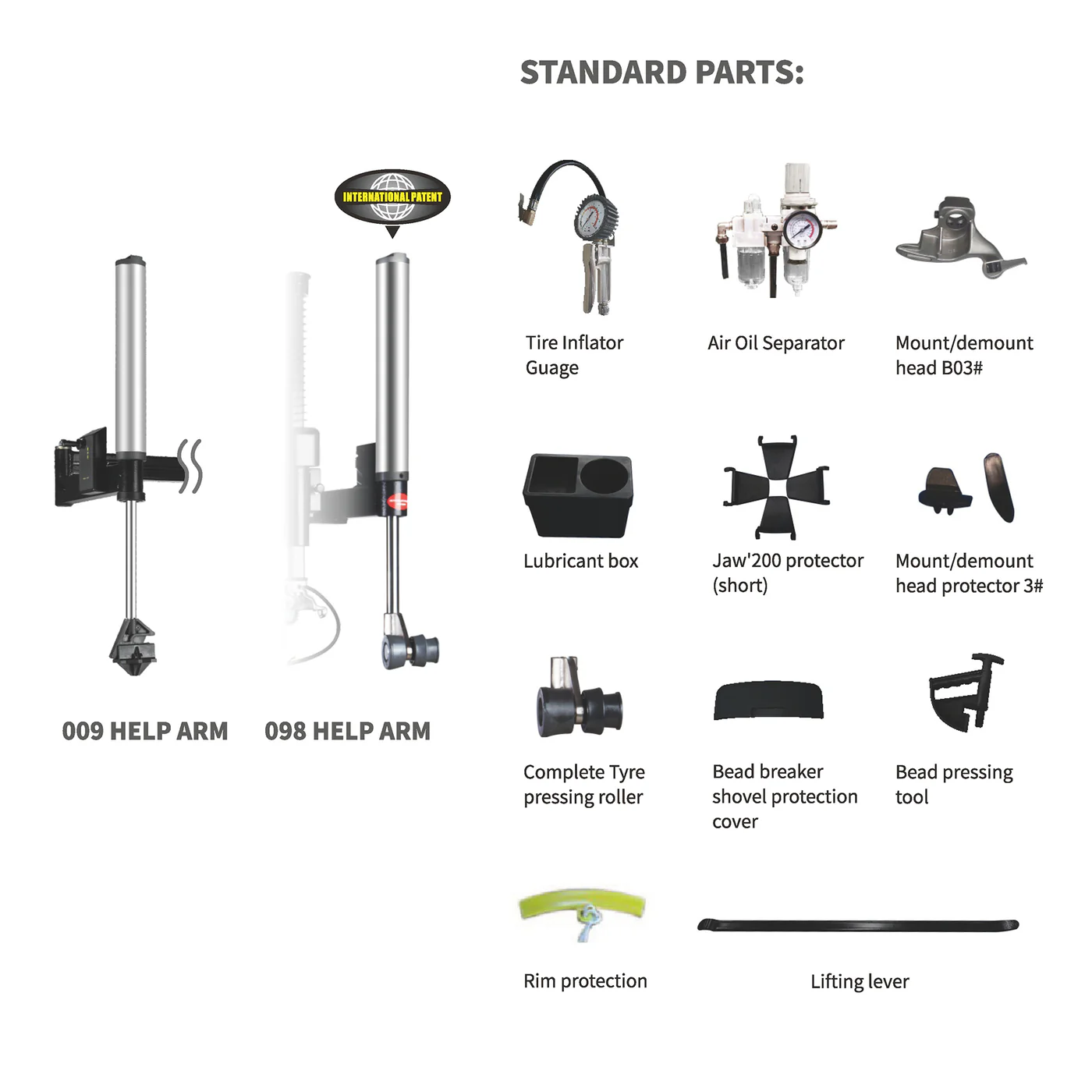

What’s Included:

• Tire Inflator Gauge
• Lifting Bar & Bead Pressing Toll
• Width Caliper
• 3 Wheel Cones
• Calibration Weight
• Quick Release Nut
• Lubrication Box
